ATLAS 8″ to 12″ Jack Plate : L Bracket # LB-AT-4.6.8.10.12 (without offset)

$49.95

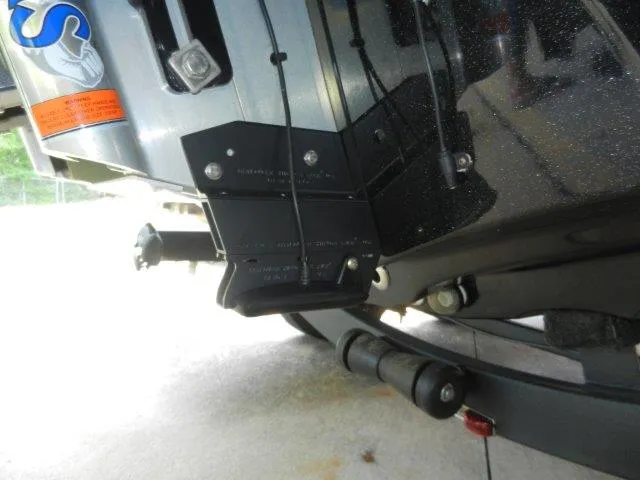

L Bracket to attach a Transducer Shield to the side of an Atlas Hydraulic 8″, 10″ and 12″ Jack Plate. PLEASE make sure that your jack plate size and Transducer Shield is listed in the description to the left.  The larger transducers require our L Bracket with an “offset” or “spacer”  to keep the trim rod from hitting the transducer.

It is very important that you complete the questionnaire when ordering this item.  The information you provide will help us to assist you better and avoid a delay in shipping your order.

  • Price: $0.00

Description

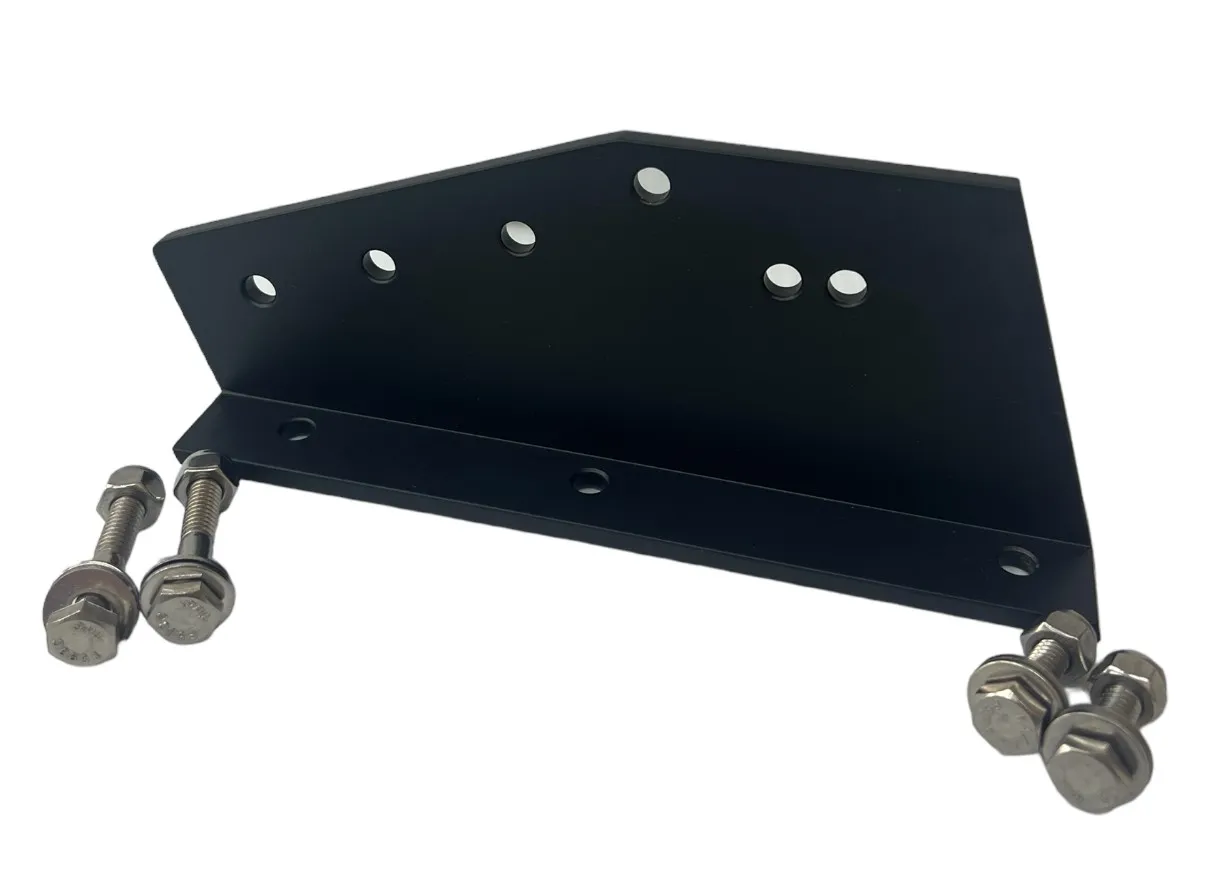

ITEM # LB-AT-4.6.8.10.12   L Bracket is built in High Quality Aluminum Alloy, Black Powder Coated and includes Stainless Steel hardware.    IMPORTANT & HELPFUL please open this link to confirm your jack plate size

Atlas Jack Plate – Measuring Guide

PLEASE NOTE:
(1)  A transducer cannot be attached to any of our L Brackets without a Transducer Shield®.  When placing your order for this product, please remember to choose the appropriate Transducer Shield® to match your transducer.
(2)  An Extension is required if you have a Skeeter ZX model boat.  On this particular boat, the hull turning chines interfere with the side viewing signal.  To help correct this problem it is necessary to add an extension between the L Bracket and Transducer Shield to lower the transducer.

This L. Bracket can be used to attach a Transducer Shield to the side of an Atlas 8″, 10″ or 12″ Hydraulic Jack Plate BUT ONLY if your Transducer Shield and Atlas Jack Plate size is listed below.

GARMIN –
TG-D-Vu ~  8, 10 or 12” jack plate
TG-GT-6   ~ 10 or 12” jack plate
TG-DS-Vu ~ 12” jack plate
TG-DS-8.4 ~ 12” jack plate

HUMMINBIRD –
TM-HDsi   *  TM-DI-2 ~   8, 10 or 12” jack plate
TM-Csi   *  TM-DI  ~  6, 8, 10 or 12” jack plate
TM-HX-3 ~ 12” jack plate
TM-ONIX-1 ~ 10 or 12” jack plate
TM-ONIX-2 ~ 12” jack plate

LOWRANCE –
TS-LSS-1 ~ 10 or 12″ jack plate
TS-HDI-3  *  TS-HDI-4  *  TS-DSI  ~ 8, 10 or 12” jack plate

RAYMARINE –
TSS-RM-1  * TSS-RM-2 ~ 12” jack plate

If the Transducer Shield that you are installing on the side of your jack plate DOES NOT appear on the list above, please go to L Bracket # LB-AT-8.10.12-Combo (4” Jack Plate), L Bracket # LB-AT-6-R3 (6” Jack Plate) or L Bracket # LB-AT-8.10.12-R3 (8”, 10” or 12” Jack Plate)

                                         Proudly Designed and Built in the USA

                                         See More Fish    ……    Catch More Fish
