Atlas 4″ Jack Plate – L Bracket # LB-AT-4-Combo (with solid spacer)

$96.95

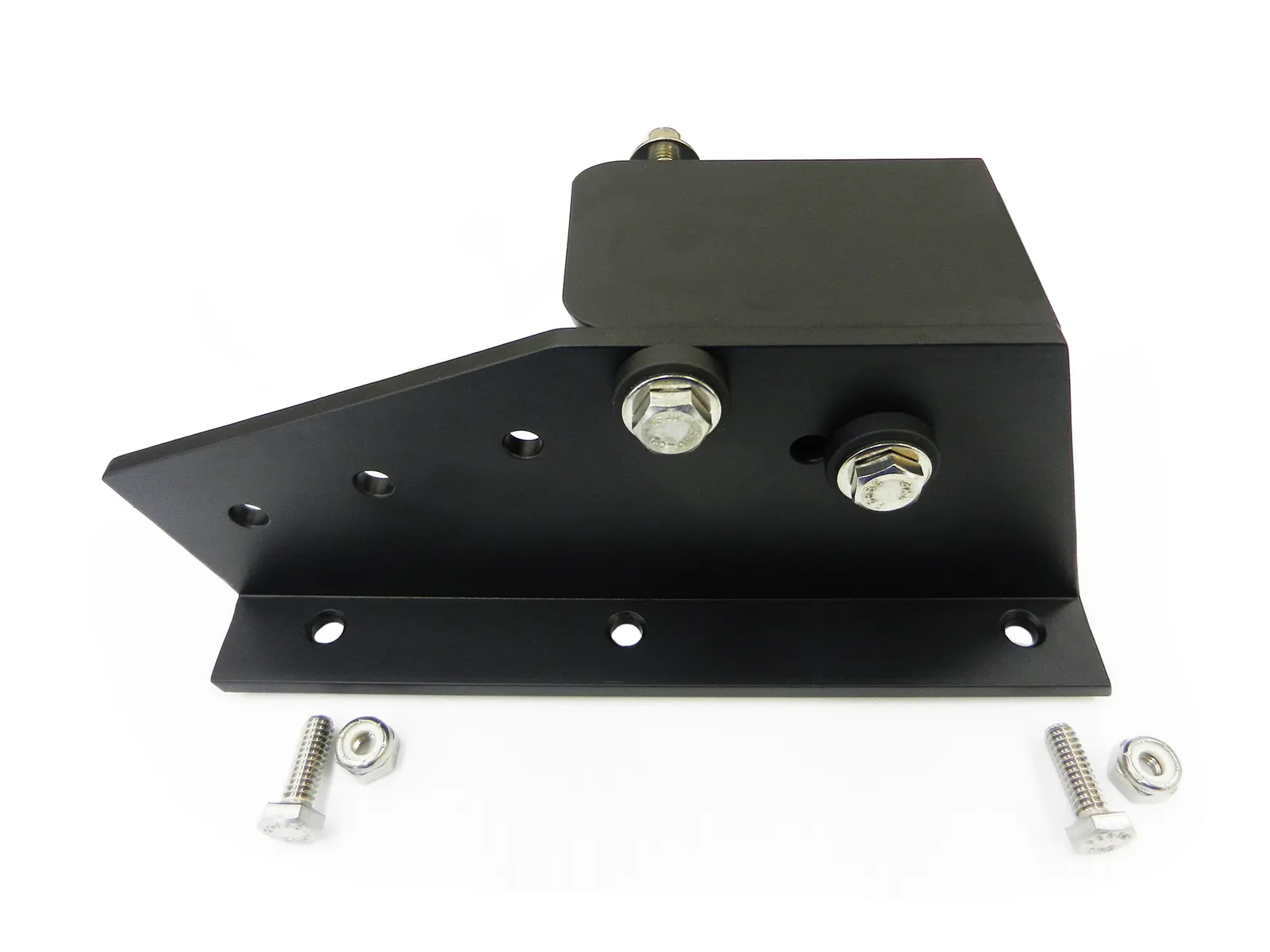

L Bracket – Combo with Solid Spacer to attach a Transducer Shield to the side of an Atlas Hydraulic 4” Jack Plate.

It is very important that you complete the questionnaire when ordering this item.
The information you provide will help us to assist you better and avoid a delay in shipping your order.

  • Price: $0.00

Description

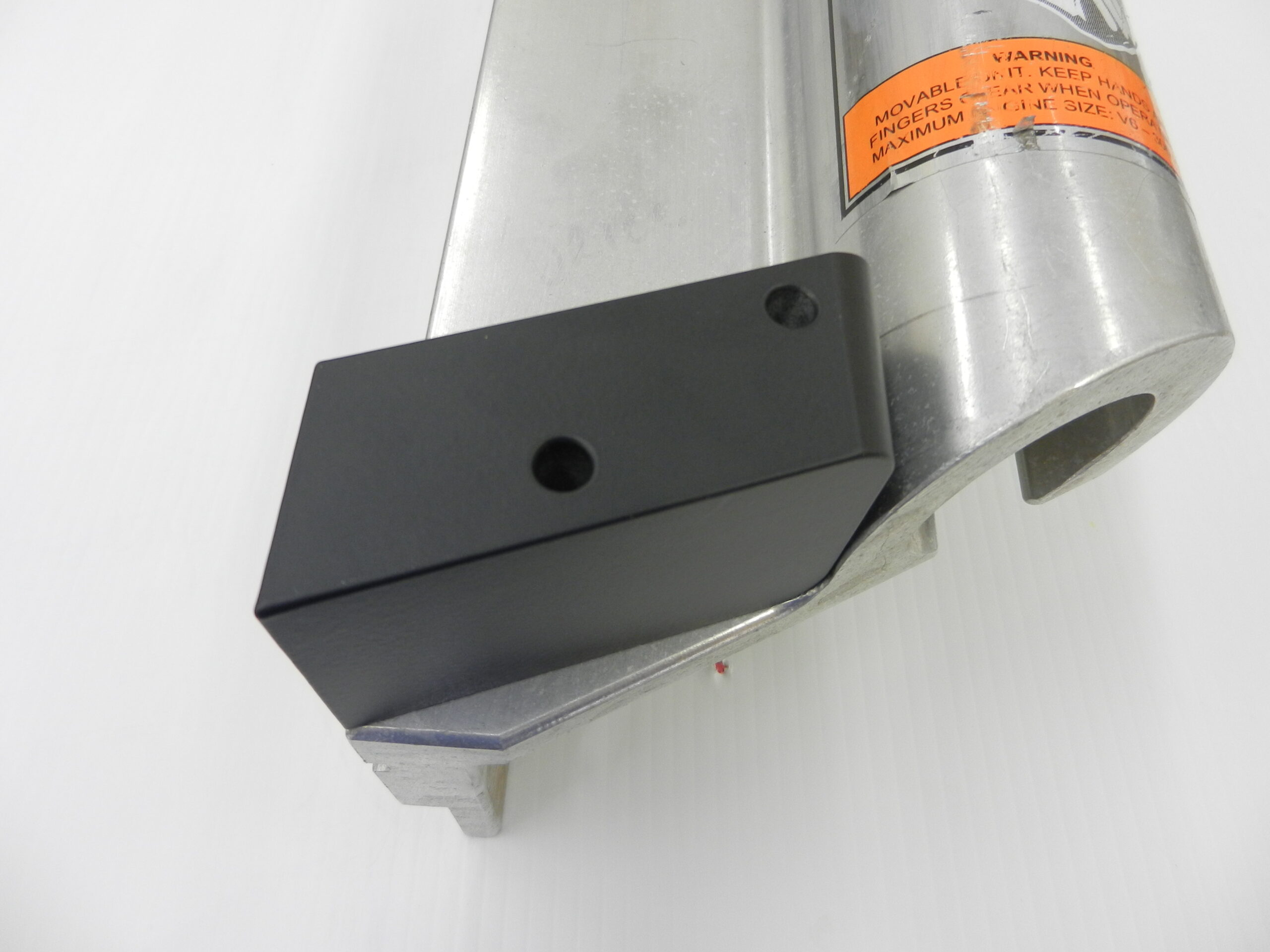

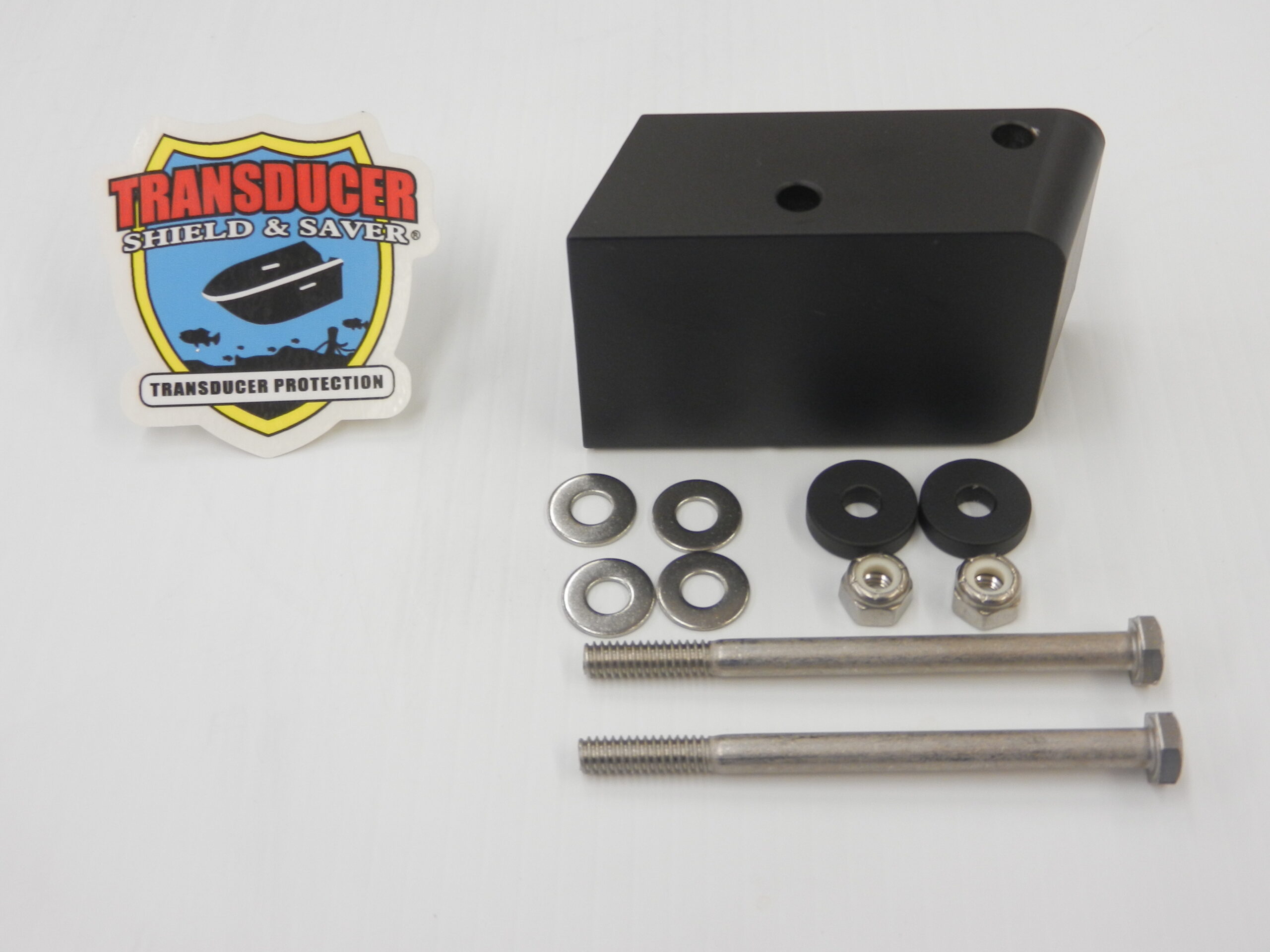

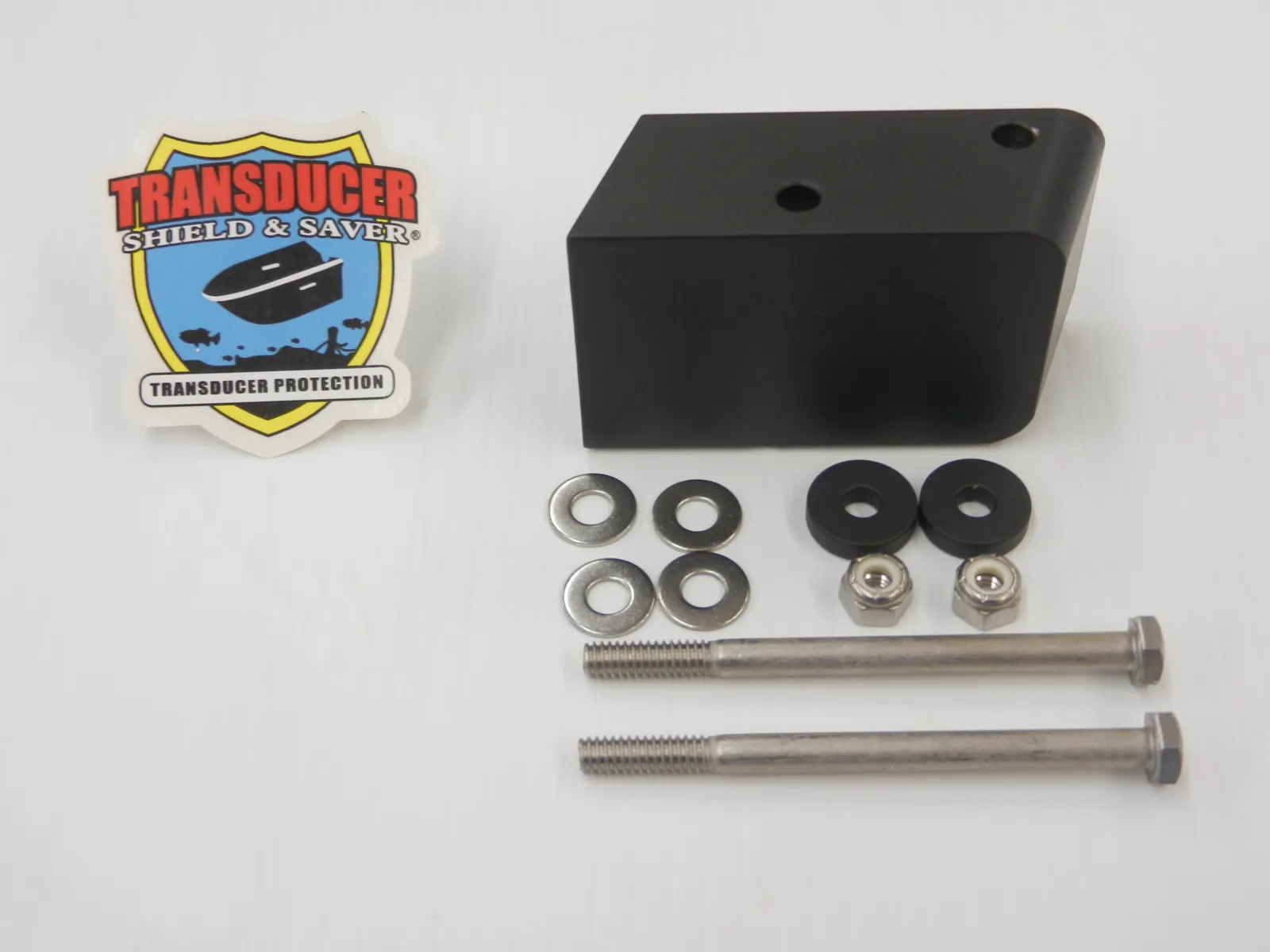

Item # LB-AT-4-Combo  The L Bracket includes a solid 2″ spacer designed to attach to a 4″ Atlas Hydraulic Jack Plate.  The spacer brings the Transducer Shield away from the Jack Plate so that the hydraulic trim rod does not interfere with, or damage the transducer or Transducer Shield® when moving up and down.  The L Bracket is built in in High Quality Aluminum Alloy, Black Powder Coated and includes stainless steel hardware.   IMPORTANT & HELPFUL please open the link below to confirm the size of your jack plate

Atlas Jack Plate – Measuring Guide

PLEASE NOTE:
(1)  A transducer cannot be attached to any of our L Brackets without a Transducer Shield®.  When placing your order for this product, please remember to choose the appropriate Transducer Shield® to match your transducer.

(2)  An Extension is required if you have a Skeeter ZX or FX model boat.  The hull turning chines interfere with the side viewing signal.  To help correct this problem it is necessary to add an extension between the L Bracket and Transducer Shield to lower the transducer.   Click on Extensions to add an extension to your order.

(3)  Typically, a “Side Image” transducer attached to an L Bracket on the Side of a Jack Plate will not track the bottom when the boat is up on plane.  To track the bottom when up on plane an “in hull” transducer is recommended.

All of our Transducer Shields being attached to a 4″ Atlas Jack Plate will require this L Bracket with a Solid Spacer.  For your convenience our Transducer Shields are listed below.

Humminbird –   * TM-H7.1  * TM-H8.3  * TM-HX-3  * TM-ONIX-1  * TM-ONIX-2  * TM-Csi-2  * TM-Di  * TM-DI-2  * TM-HDSI

Garmin –  TG-D-Vu  * TG-D/S-Vu  * TG-GT-6  * TG-DS-8.4 * TG-HG-8.5 * TG-DS-9

Lowrance –   * TS-TRI-SH  * TS-AIHD-TS  * TS-DSS3-TS  * TS-HDI-4 * TS-HDI-3  * TS-LSS-1  * TS-LSS-3D  * TS-LSS2-L  * TS-LSS2-3D * TS-SP-SH  * TS-DSi

Raymarine –  TSS-RM-1 (dragonfly)  * TSS-RM-2

It is very important that you complete the questionnaire in full when ordering any of our products.  The information you provide will help us to assist you better and avoid a delay in shipping your order. The more information that we have about your boat and jack plate, the better we can assist you.  Contact us if you need further assistance.

Proudly Designed and Built in the USA

See More Fish    ……    Catch More Fish
