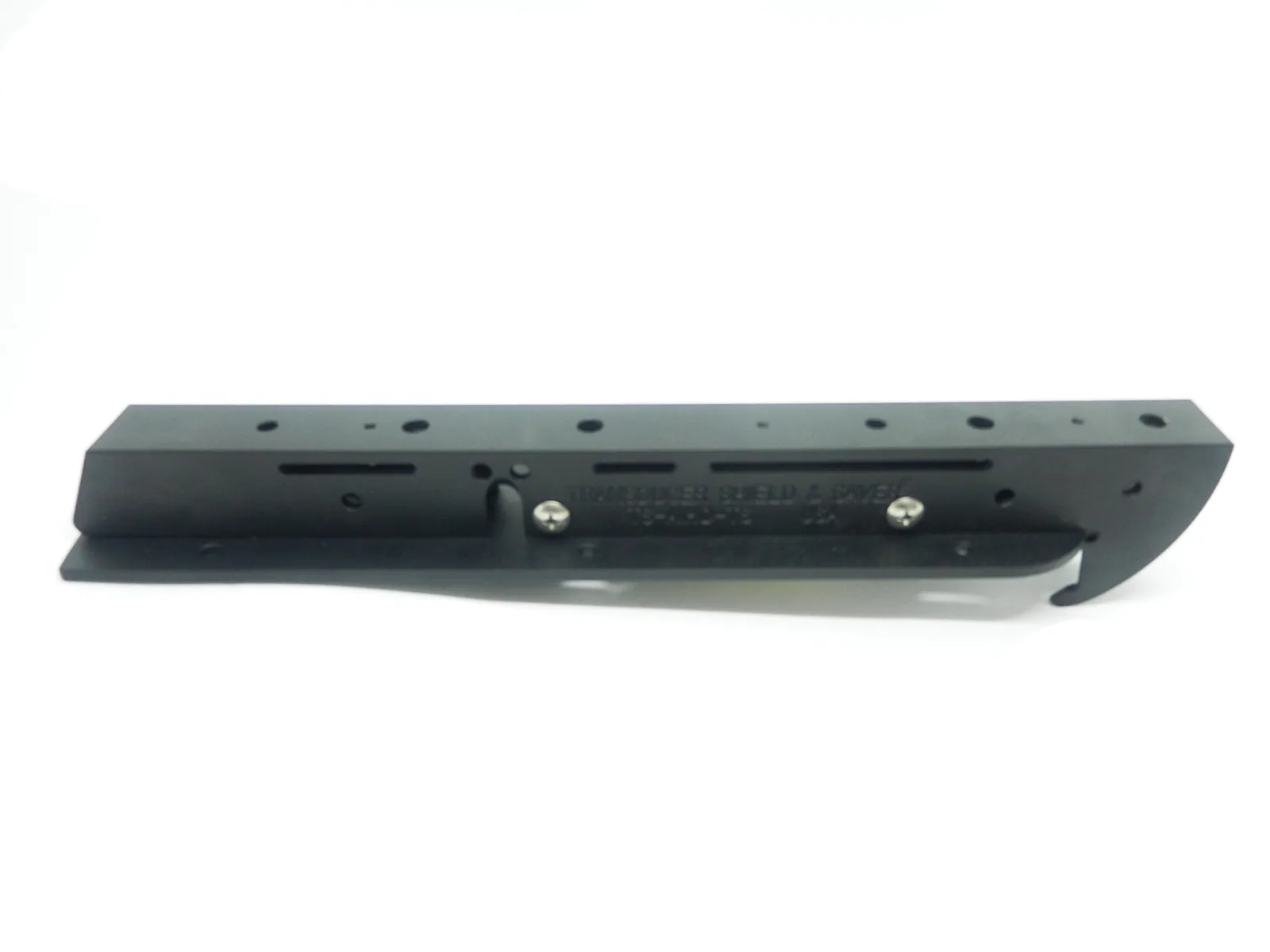

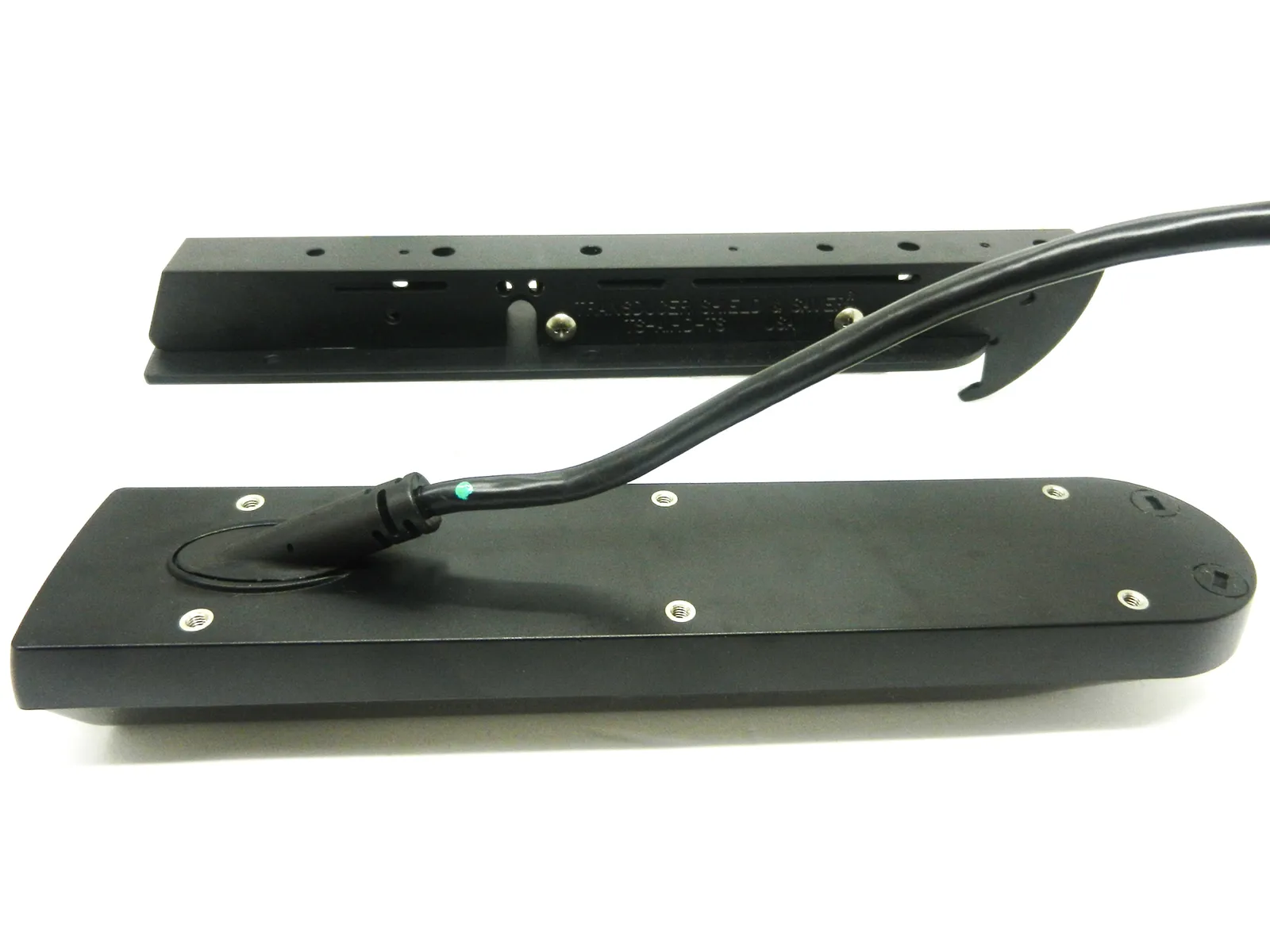

Picture shows TS-AI-HD Transducer Shield & Lowrance ActiveImaging HD transducer

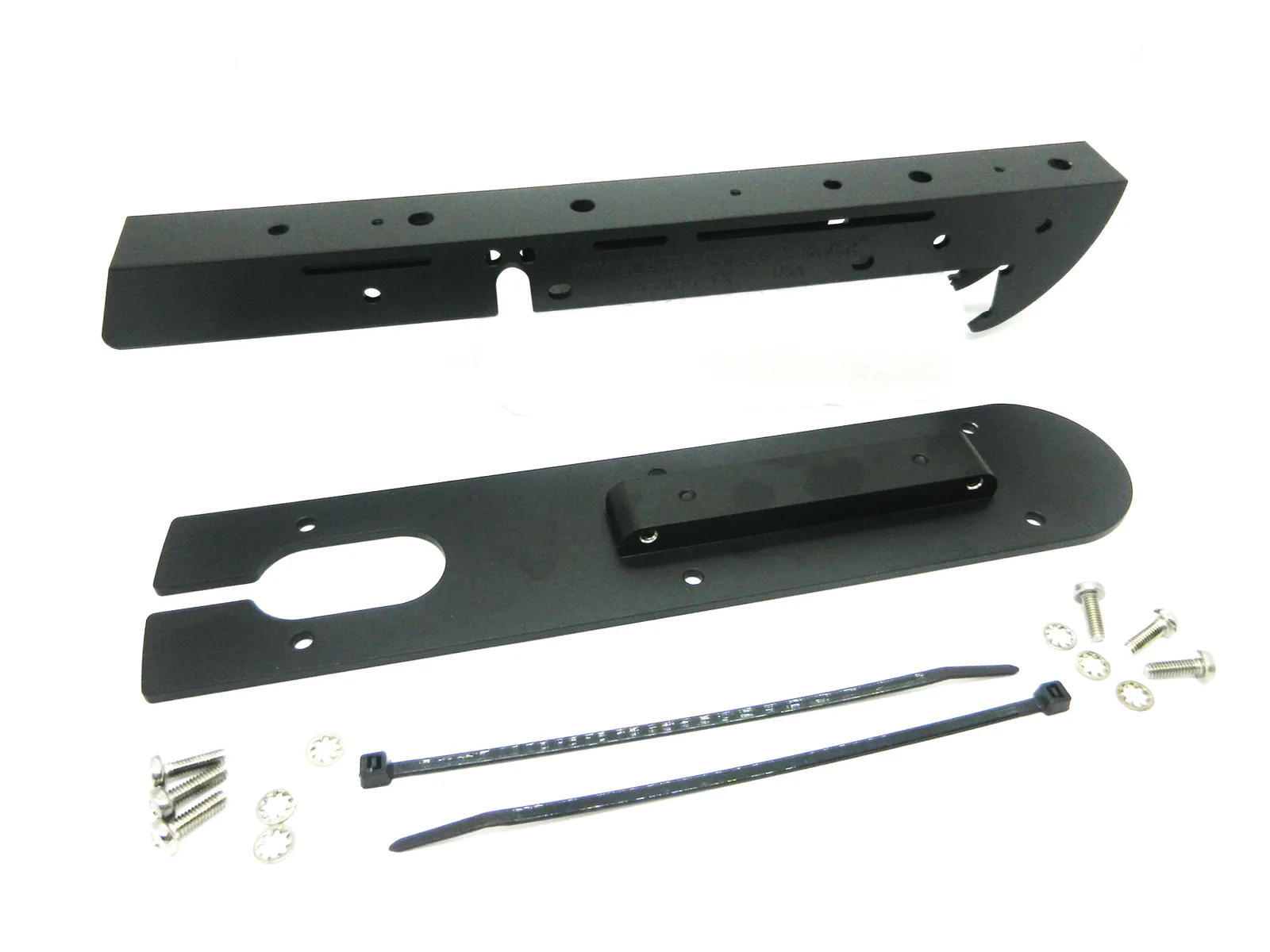

Picture shows Transducer Shield plate and rail

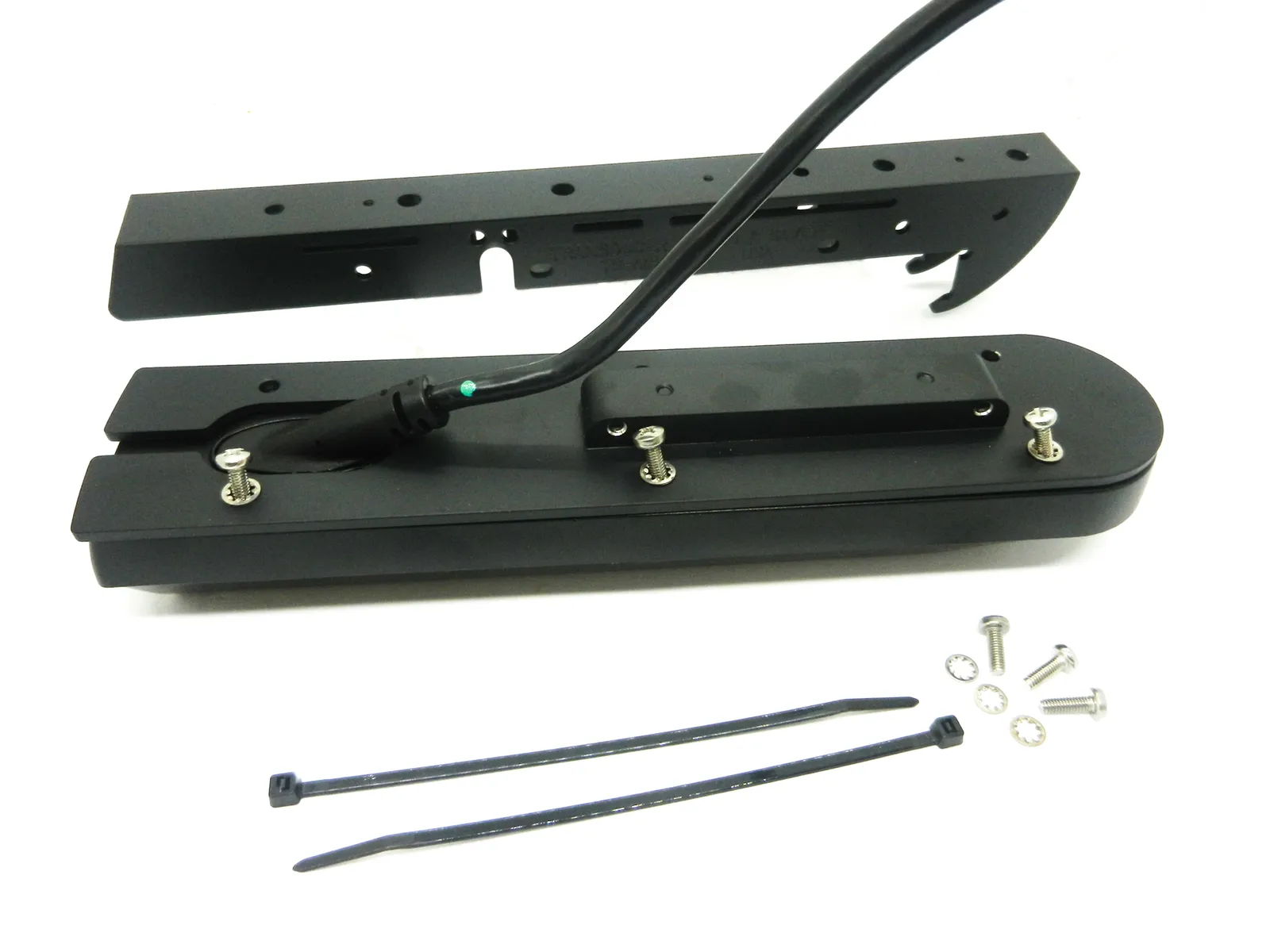

Picture shows plate attached to the transducer

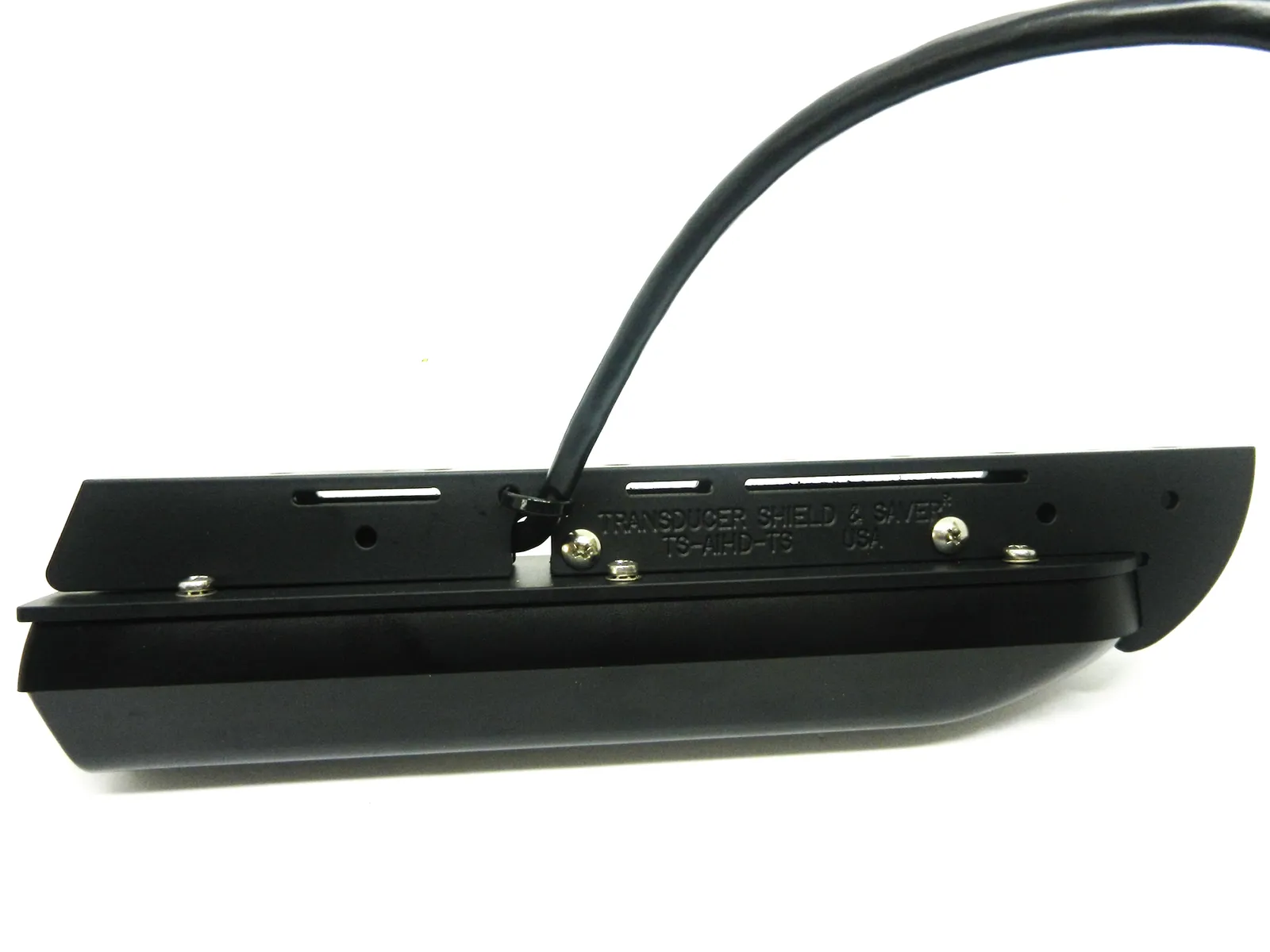

Transducer Shield attached to the transducer

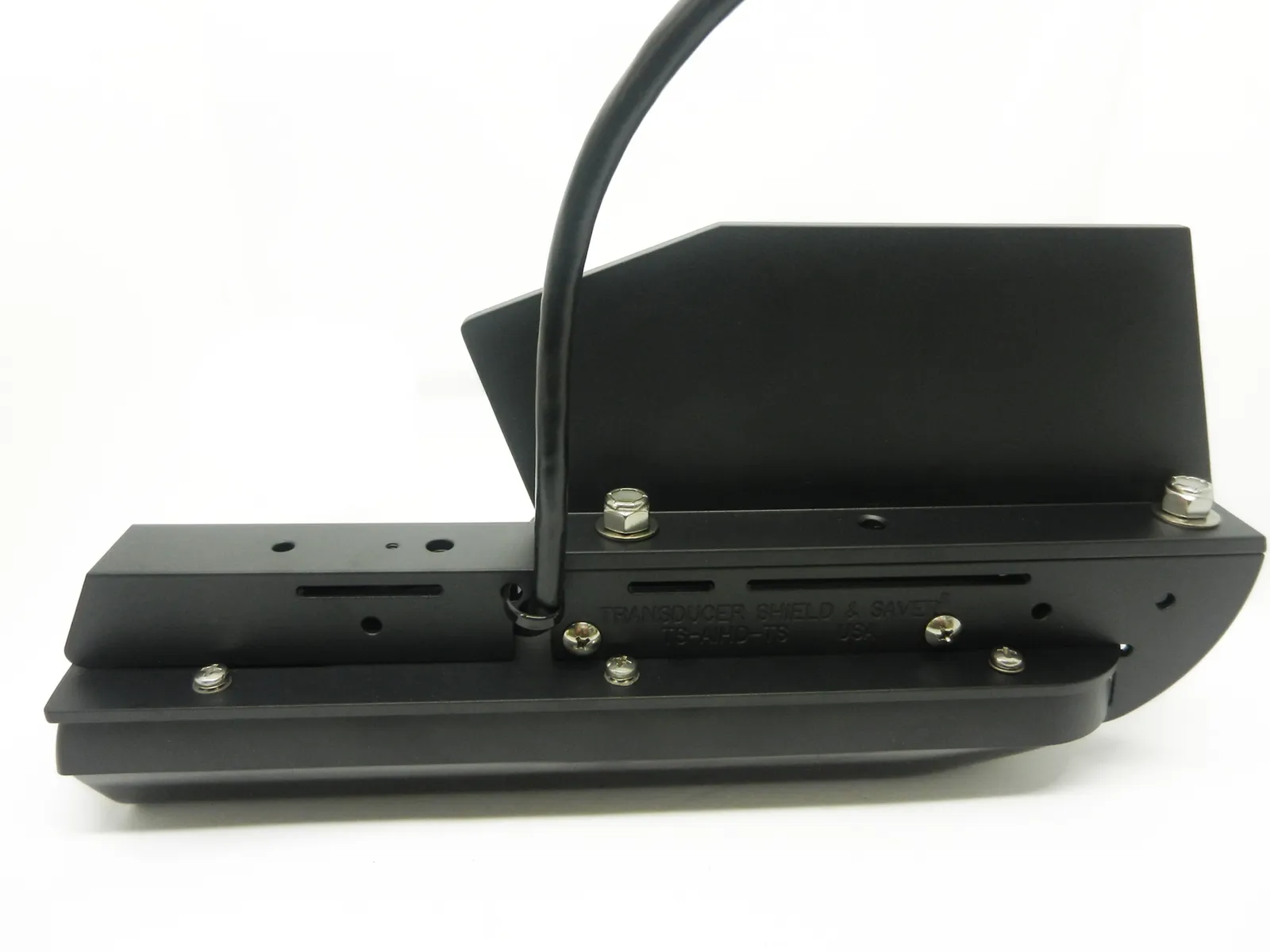

Picture shows an L Bracket attached to Transducer Shield for side of Jack Plate installation

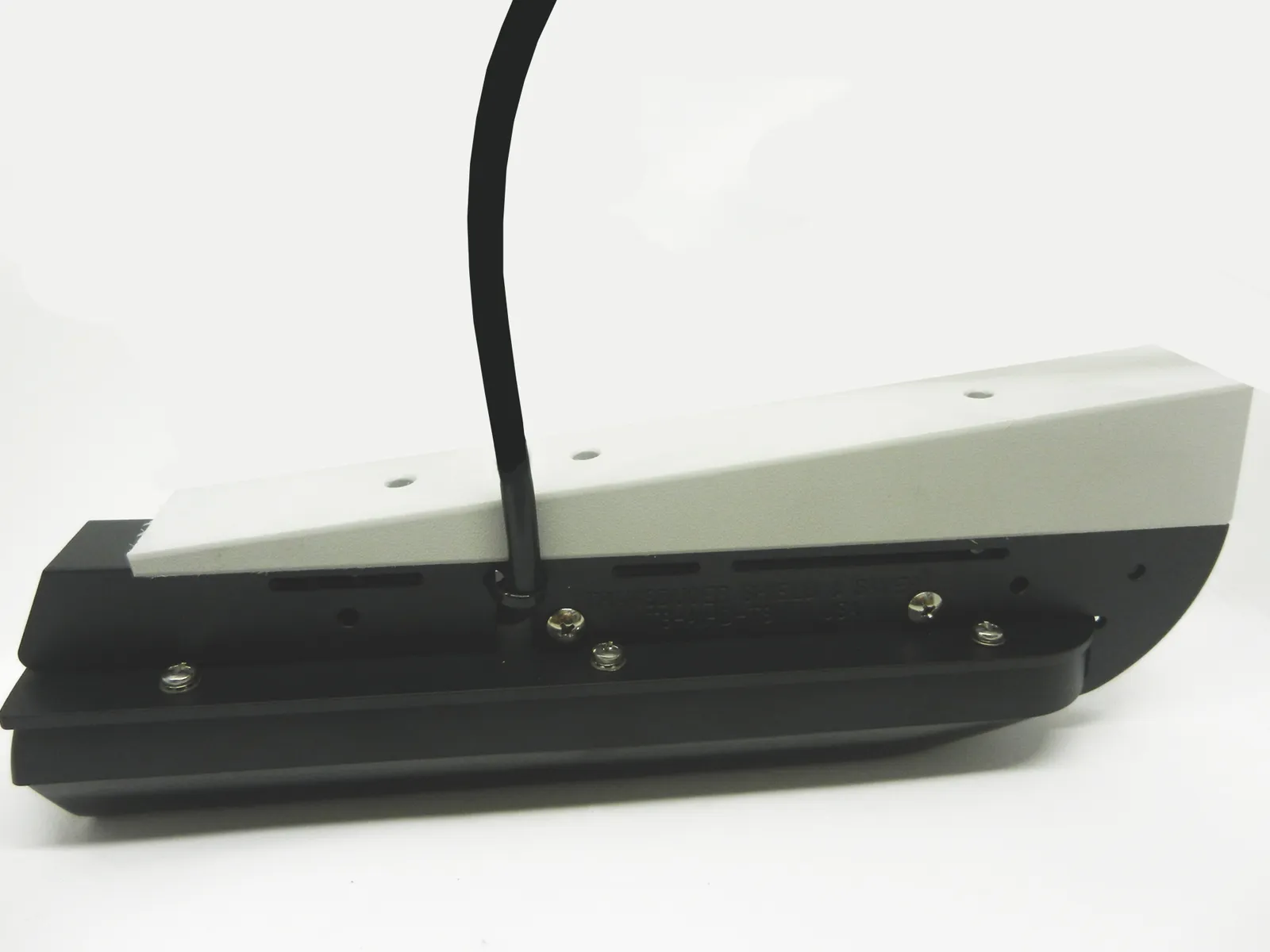

Picture shows a Polyethylene Wedge attached to Transducer Shield for set back installation

TS-AIHD-TS fits Lowrance® ActiveImaging HD™ or FishReveal

Name: TS-AIHD-TS fits Lowrance® ActiveImaging HD™ or FishReveal
SKU: 48323
Availability: InStock

$199.00

Item # TS-AIHD-TS is designed to fit Lowrance® Active Imaging HD™ 3-in-1 Transducer # 000-16062-001 (approx. 10-1/4” long x 2” wide x 1-1/4” thick and the cable comes out from the back).

It is formatted for installation on the side of the jack plate, hole shot plate or set back. If you are interested in installing to your transom, please see our Armor Plates.

Subtotal
Options
Total

Quantity:

Categories: Lowrance, LOWRANCE, Shields Tags: active imaging, bass fishing, fish finder, fish revleal, guard, hole shot plate, jack plate, Lowrance, LSS1, protection, saver, set back, shield and saver, Structure Scan, Trolling Motor

Description

Choose this item for Jack Plate or Set Back installation.

For trolling motor installation go to TS-AIHD-TS-COMBO.

Item # TS-AIHD-TS is built-in High-Quality Aluminum Alloy and Black Powder Coated.

It is designed to fit Lowrance® Active Imaging HD™ 3-in-1 Transducer # 000-16062-001 or Active Imaging HD™ 3-in-1 Fish Reveal Transducer # 000-16060-001 (approx. 10-1/4” long x 2” wide x 1-1/2” thick and the cable comes out from the back. The Sleek Hydrodynamic Design will cut through the water for less drag, reduces collection of debris, keeps the transducer positioned correctly and will not interfere with the transducer signal.

Item # TS-AIHD-TS along with additional components can easily be bolted to (a) the side of a Jack Plate or (b) on the boat set back (under the transom). The Transducer Shield must be attached to an L Bracket or Wedge for (a) or (b) installation.

NOTE: When the transducer is attached to a Set Back or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water. For bottom reading on plane, a transducer inside the hull will be required. See your Lowrance® owner manual for additional information.

ADDITIONAL COMPONENTS required when purchasing Item # TS-AIHD-TS:

(a) on the side of a Jack Plate – Click on L Brackets
(b) on the Transom Set Back – Click on Wedges

*** If your boat does not have a Jack Plate or Set Back and you must attach your transducer to the back of the boat on the transom – Please go to Spring Back Bracket Item # SBB-5

NOTE: Lowrance made this transducer very similar in name as their other products, but with slightly different shapes. Please see the photo guide below to ensure you are ordering the correct part needed.
