TM-HX-3 fits Humminbird® Helix G2N Mega Si or Solix G1N Si Transducer

$179.00

TM-HX-3 fits Humminbird® Chirp Helix Mega Si GPS G2N transducer XM 9 20 MSI T or Solix G2N  Si XM transducer XM 14 20 MSI T for trolling motor, set back or jack plate installation.  If this item is going on a Trolling Motor, please answer the trolling motor questions.  If this item is going on the Jack Plate please answer all the questions about your jack plate and boat.  It is very important that you answer the questionnaire in full please.

NOTE:  When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water.  For bottom reading on plane, a transducer inside the hull will be required.

  • Strap Size Guide:

    Motorguide = 3.5"


    Minnkota up to 70 lb thrust = 3.5"

    Minnkota 74 to 101 lb thrust = 4.0"

    Minnkota 112 lb 4.5"

Description

ALERT –   TM-Please click the link to identify which transducer came with your Helix 10.  Some of these units are being sold with the latest G3N Side Image Transducer 8-3/8 long x 2-1/4″ wide.   Do not order Transducer Shield TM-HX-3 until you identify your transducer.  Humminbird Mega & Solix transducer  TM-HX-3 will not fit transducer # XM9 H1012 HW MSI T   If you need further assistance please call.

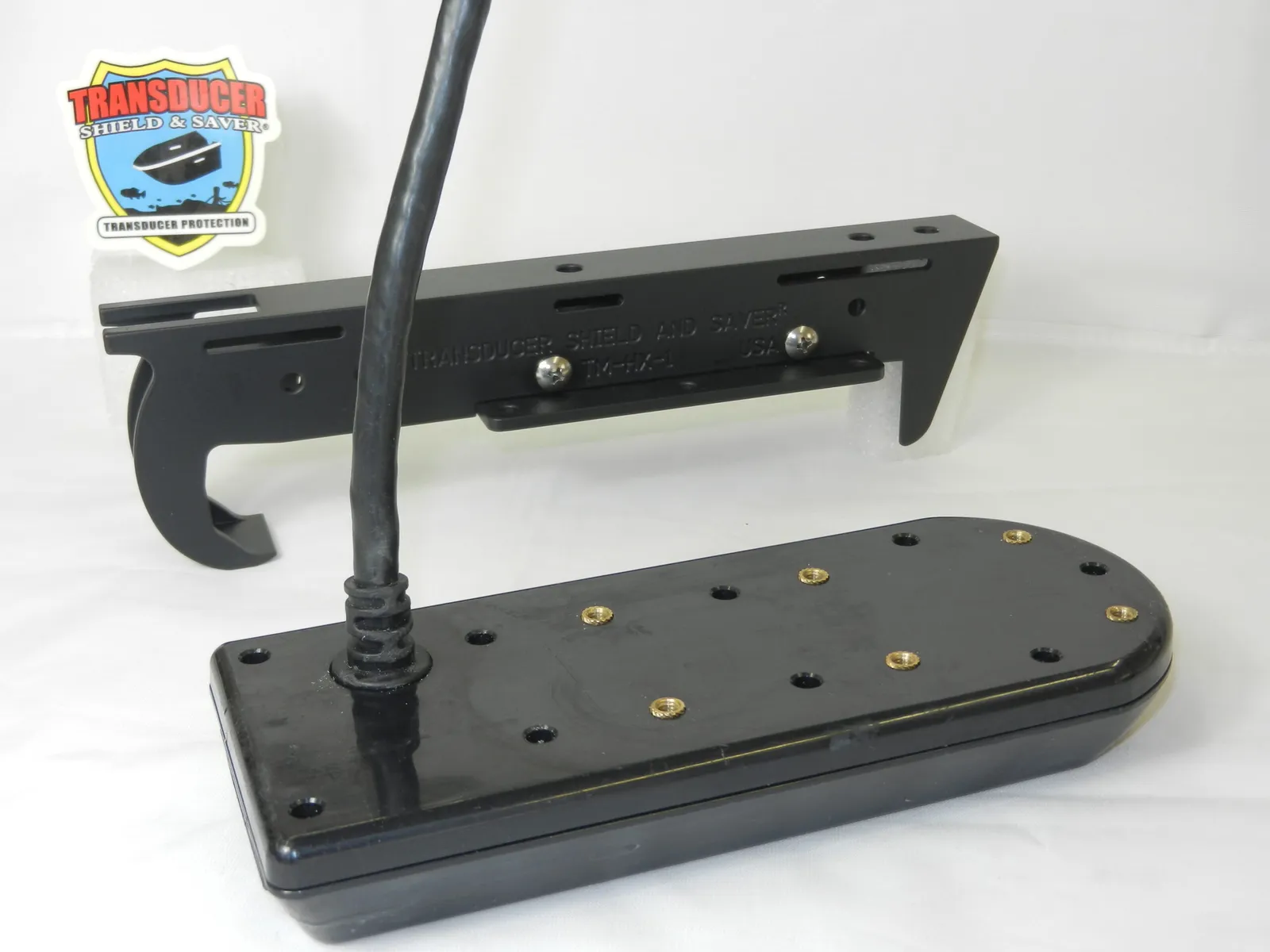

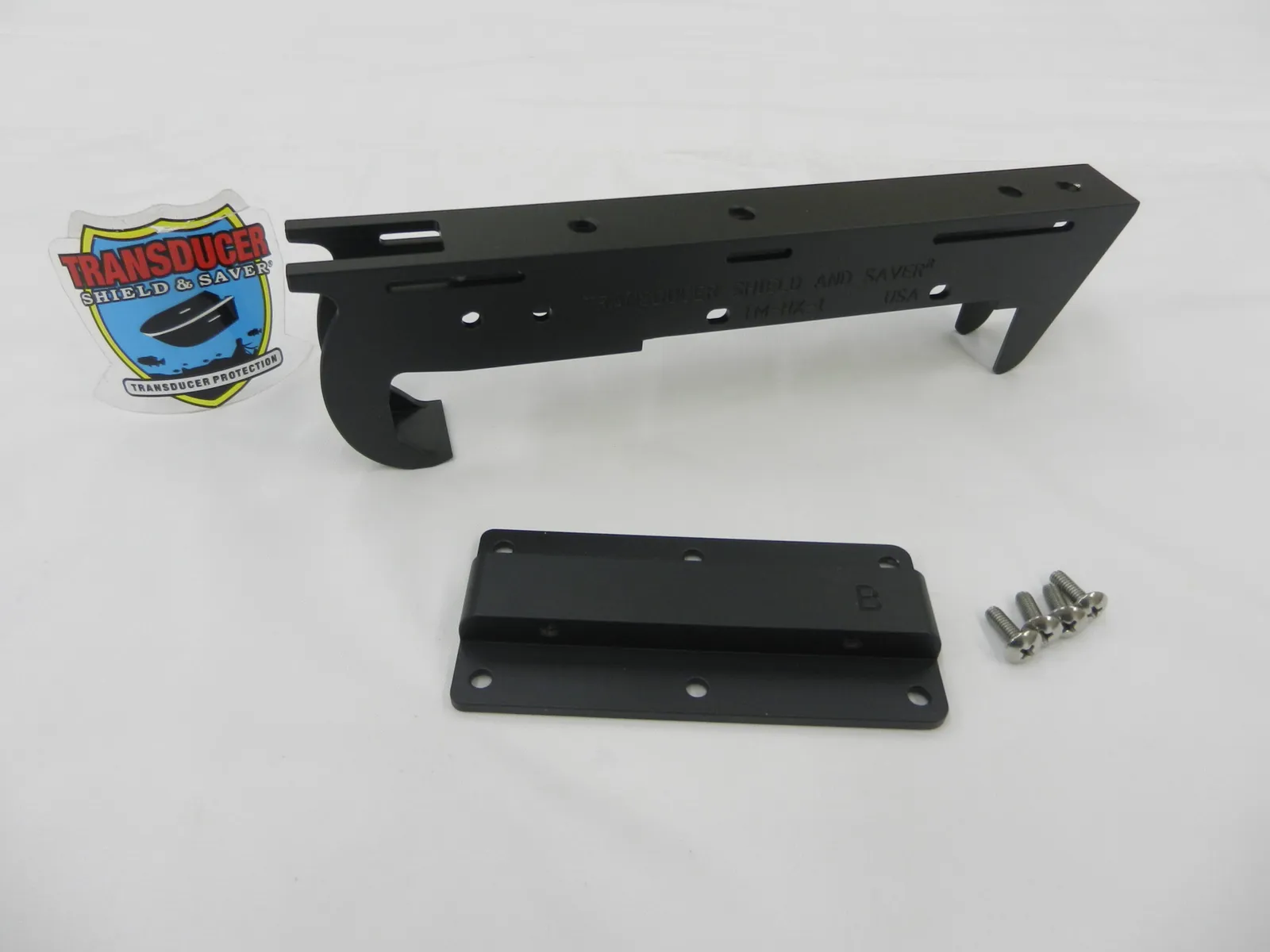

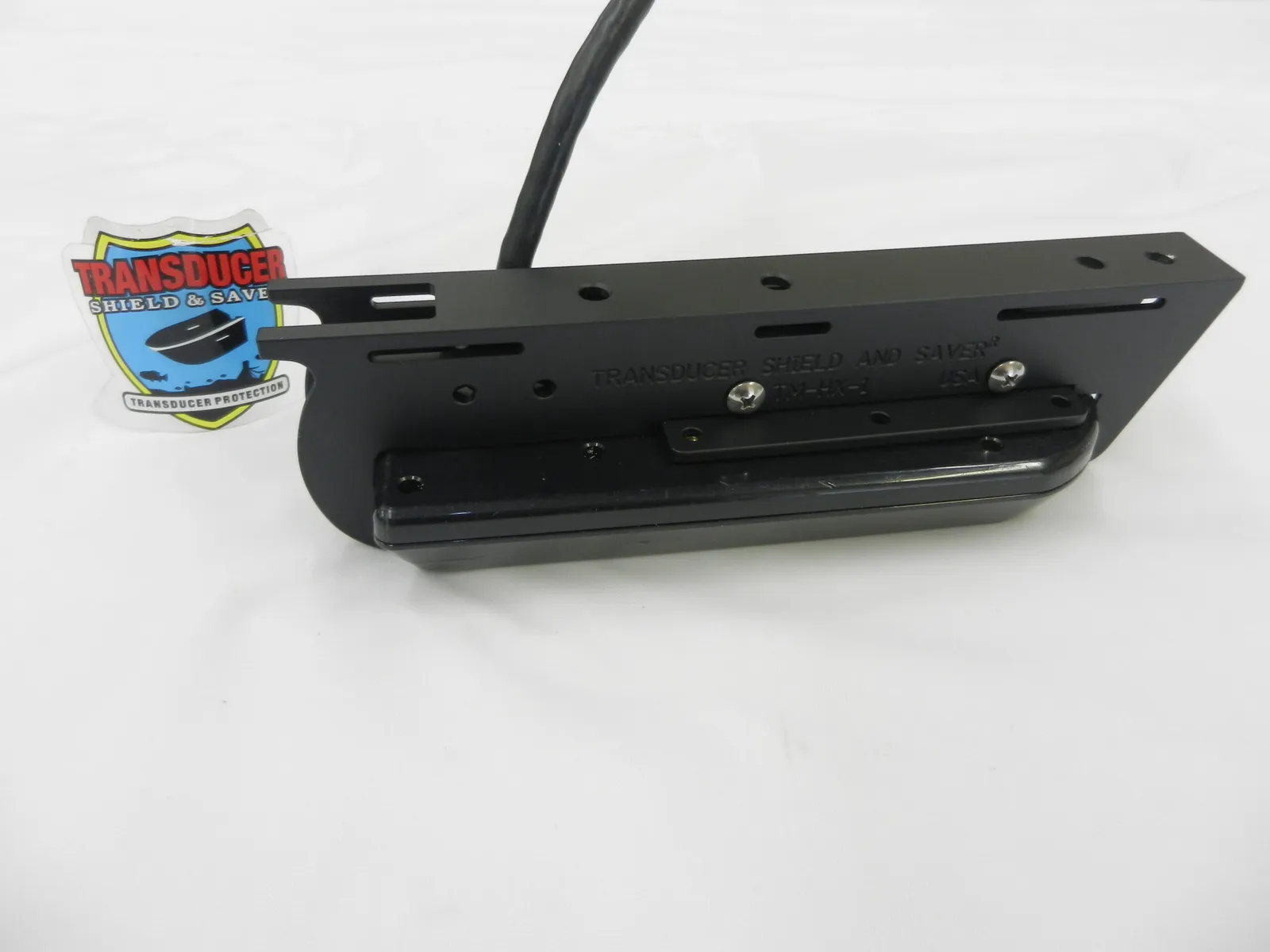

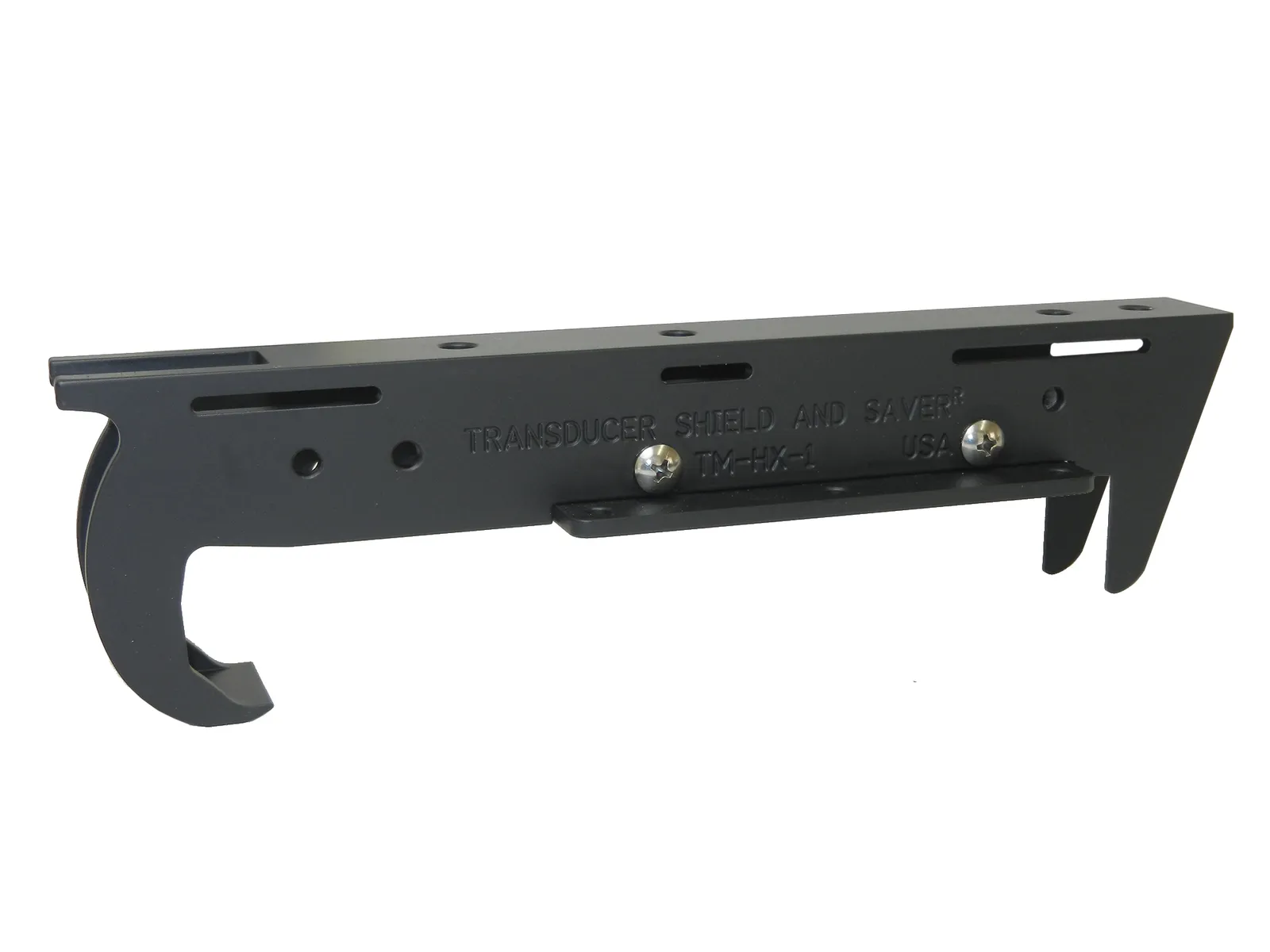

Item # TM-HX-3 is built in High Quality Alloy and Black Powder Coated.  It is designed to fit Humminbird® Chirp Helix Mega Si GPS G2N Transducer XM 9 20 MSI T and Solix 12 & 15 Transducer XM 14 20 MSI T.  The Sleek Hydrodynamic Design will cut through the water for less drag, especially on trolling motors.  It reduces collection of debris, keeps the transducer positioned correctly and will not interfere with the transducer signal.

NOTE:  When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water.  For bottom reading on plane, a transducer inside the hull will be required.

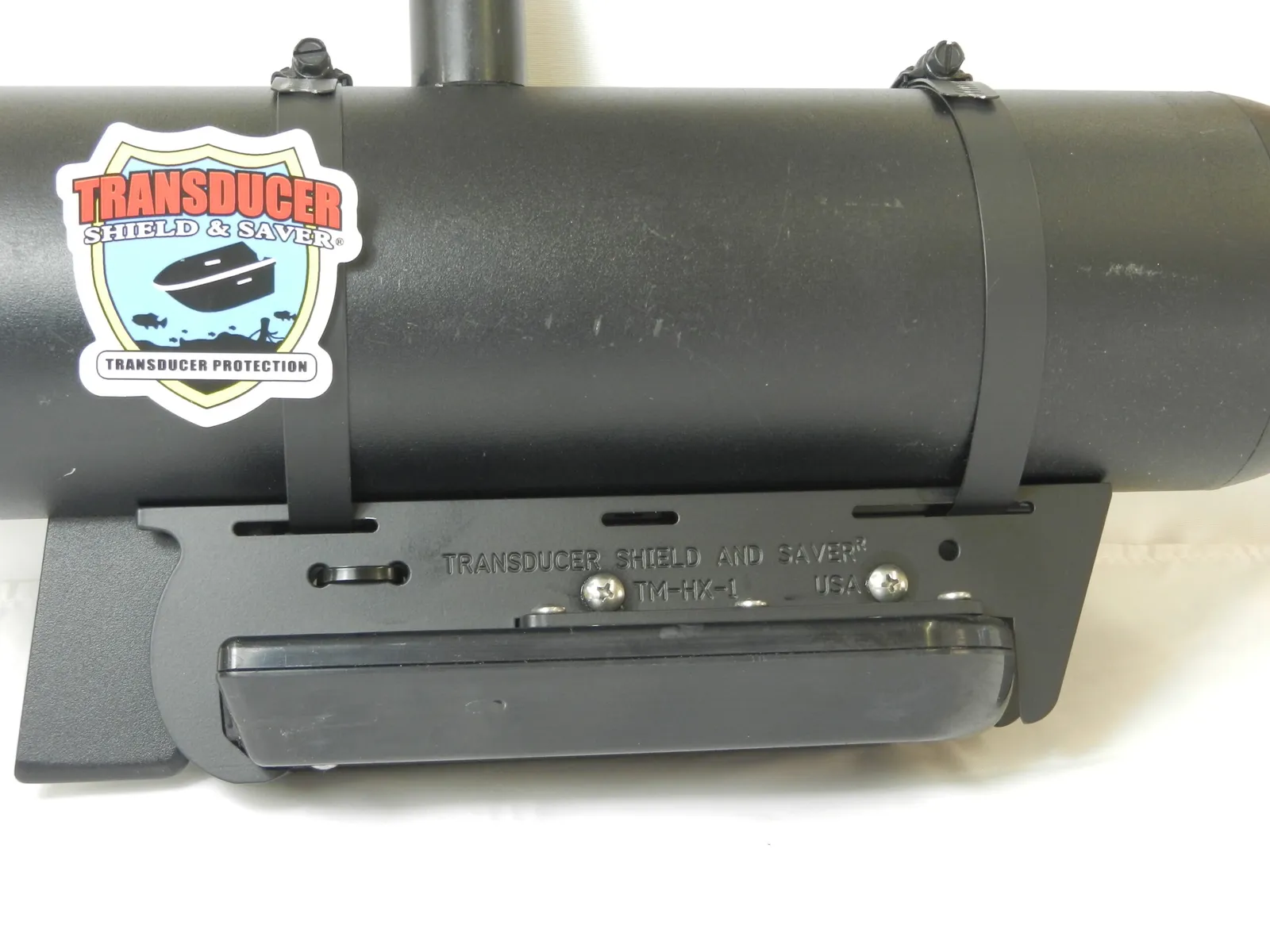

For trolling motor installation, two straps are required and are not included with the Transducer Shield.  Heavy Duty Stainless Steel, Black Powder Coated straps are available @ $5.95 each.

WARNING:  Due to the size of the transducer and Transducer Shield, when installed on a trolling motor, additional components may be required for a better fit on the trolling motor. If your trolling motor has the skeg at the front you will need a Ram Rail Kit @ $150.00 in addition to the Transducer Shield.  Please call for assistance.

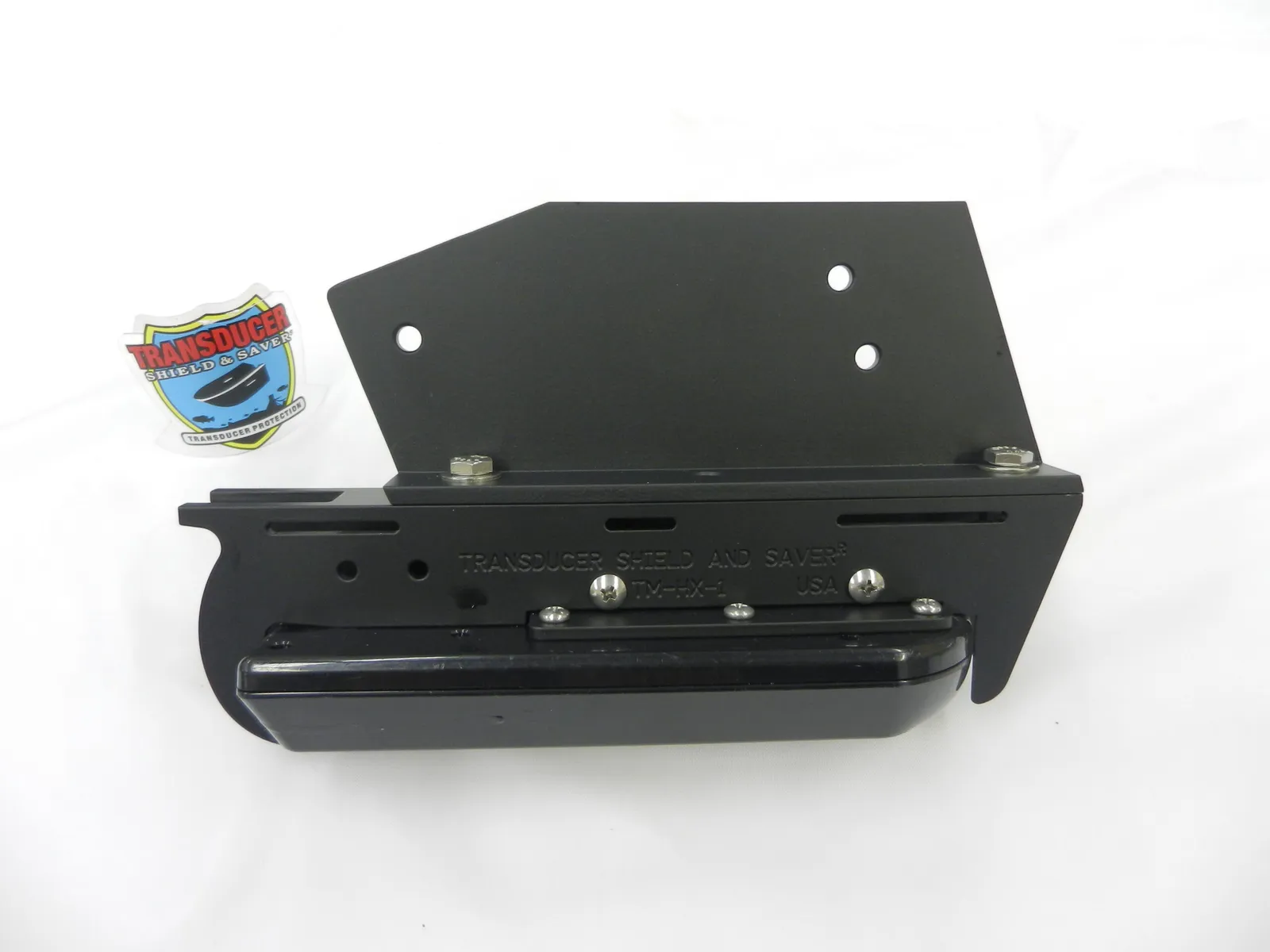

Item # TM-HX-3 along with additional accessories can easily be bolted to one of our L Brackets for installation on the side of a Jack Plate OR on one of our Wedges for installation under a Jack Plate if a hole shot plate is present OR on one of our Wedges for installation under the Set Back under the boat.  For more information please go to L Brackets and/or Wedges.

This Transducer Shield WILL NOT fit the SOLIX G2N or HELIX G3N Side Image Transducer. CLICK HERE to identify your transducer   Humminbird Mega & Solix transducer

NOTE:  When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water.  For bottom reading on plane, a transducer inside the hull will be required.

It is very important that you complete the questionnaire when ordering this item.  The information you provide will help us to assist you better and avoid a delay in shipping your order.

Proudly Designed and Built in the USA

See More Fish ………. Catch More Fish

Additional information

Weight 3 lbs
Dimensions 8 × 4 × 4 in
