Description
ITEM # TM-DI-2 is built in High Quality Aluminum Alloy and Black Powder Coated. The Sleek and Hydrodynamic design will reduce collection of debris and keep the transducer positioned correctly and will not interfere with the transducer signal. This Transducer Shield® can also be attached to any of our L Brackets for installing on the side of your jack plate OR on a Wedge for installing on a hole shot plate (under the jack plate) or Set Back on some boats.

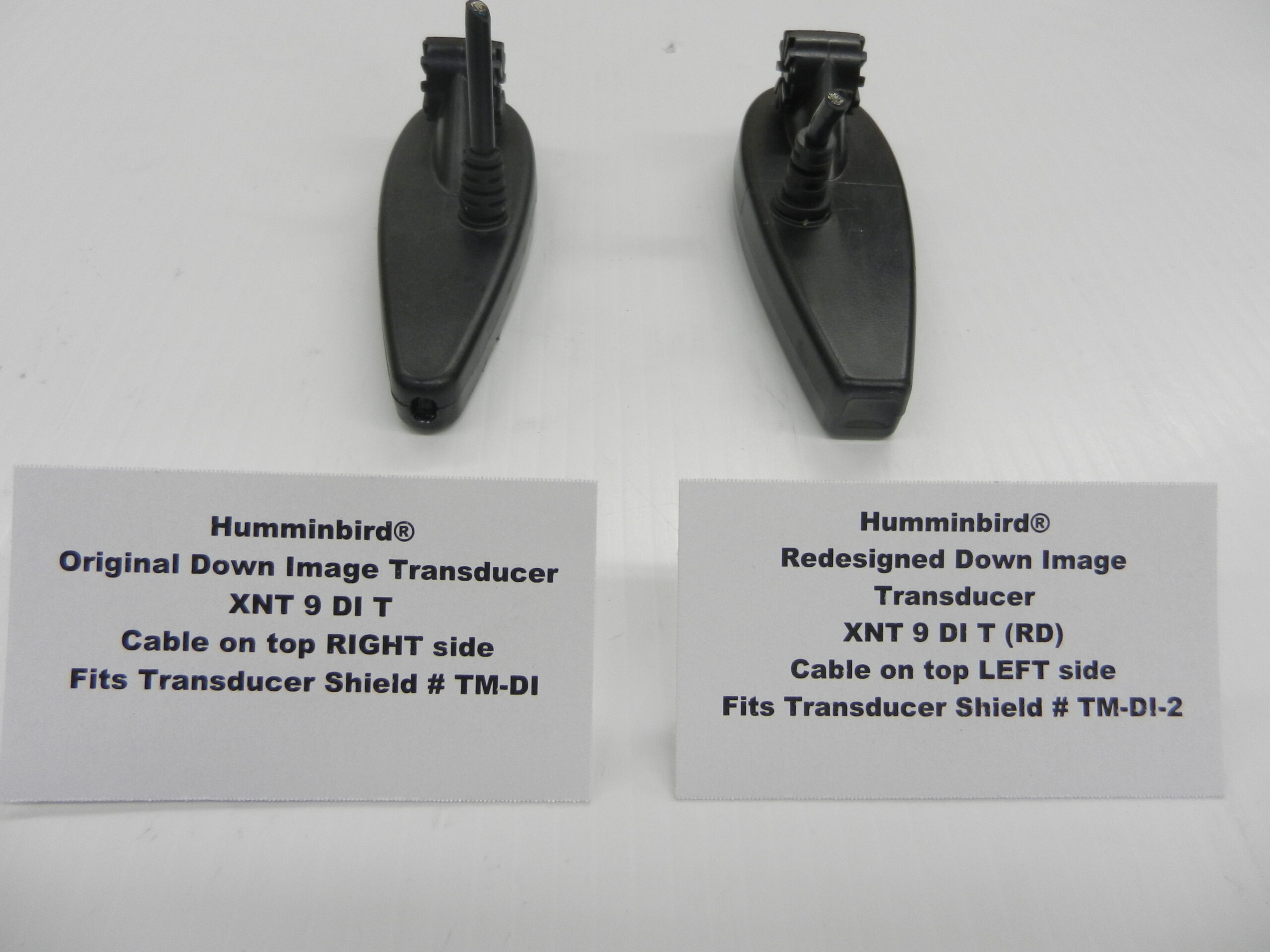

It is uniquely designed to fit the following Humminbird® redesigned Down Image Transducer # XNT 9 DI T (RD). Onix Down Image Transducer # XNT 14 DI T (RD) , Mega Down Image Transducer # XM 9 MDI T and XNT 0 HW MDI 75 T. It is very important that you know YOUR transducer number because Humminbird® HAS NOT changed the transducer numbers on their website. If you are not sure which transducer you have, please click on the following link – CLICK HERE to see more transducer information

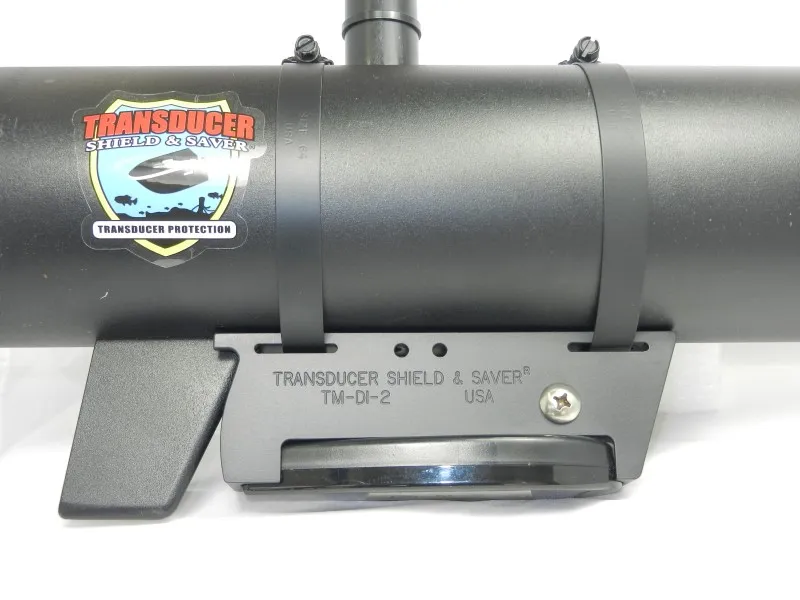

For trolling motor installation, two straps are required and are not included. Heavy duty stainless steel, black powder coated straps are available @ $5.95 each. NOTE: For Minnkota 74 lb thrust and below (with prop & skeg on opposite ends) OR Motorguide 12v 54 lb thrust and below, additional custom components are required.

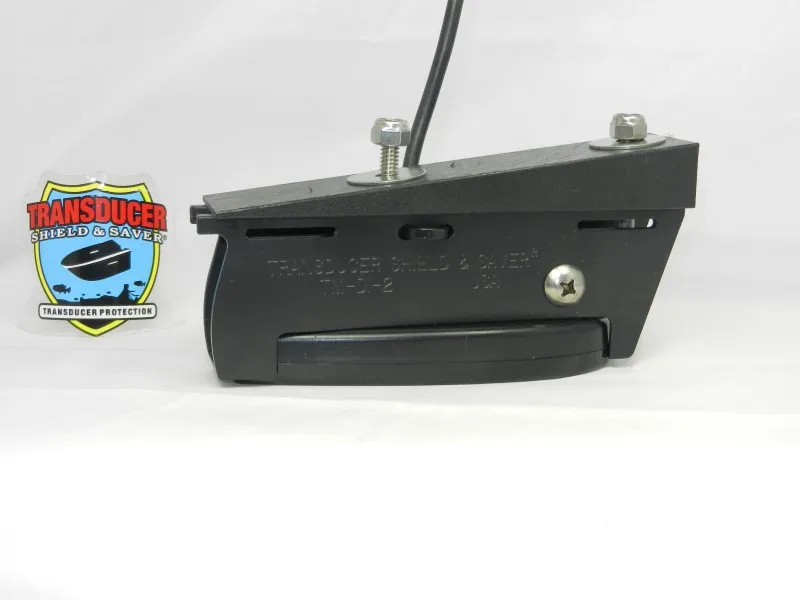

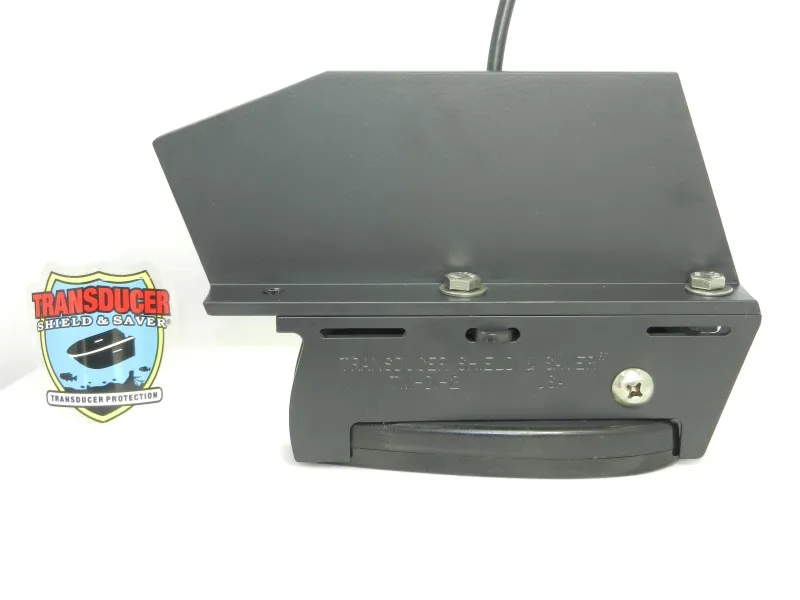

Item TM-DI-2 along with additional accessories, can easily be bolted to the side of a Jack Plate, on the hole shot plate under the jack plate OR on a boat set back. For more information please go to L Bracket and/or wedges.
NOTE: When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water. For bottom reading on plane, a transducer inside the hull will be required.
It is very important that you complete the questionnaire when ordering this item. The information you provide will help us to assist you better and avoid a delay in shipping your order.
CLICK HERE to see more transducer information.
Proudly Designed and Built in the USA
See More Fish …… Catch More Fish
