TS-DSS3-TS to fit Lowrance®Total Scan, Structure Scan 3D and HDS Live xDucer 2-in-1 or 3-in-1 on Jack Plate, Hole Shot or Transom Set Back

$189.00

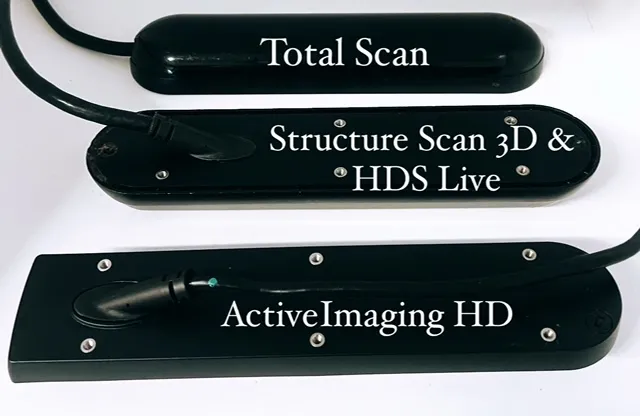

Choose this item for Jack Plate, Hole Shot Plate or Set Back installation  to attach a Lowrance®/Simrad® Total Scan transducer # 000-12568-001 or Lowrance®/Simrad® Structure Scan 3D transducer # 000-12396-001 on a Jack Plate or Transom Set Back. This Transducer Shield  will also fit the New Lowrance HDS LIVE Active Imaging 2-in-1 transducer # 000-14490-001 and 3-in-1 transducer # 000-14489-001.  NOTE:  this item DOES NOT fit the ActiveImageing HD 3-in-1 Transducer  # 000-16062-001 or ActiveImaging HD 3-in-1 FishReveal Transducer # 000-1060-001.

NOTE:  When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water.  For bottom reading on plane, a transducer inside the hull will be required.

For trolling motor installation go to TS-DSS3-TS-COMBO.
It is VERY IMPORTANT that you complete the questionnaire when ordering this product.

  • Price: $0.00

Description

Choose this item for Jack Plate, Hole Shot Plate or Set Back installation.  For trolling motor installation go to TS-DSS3-TS-COMBO.

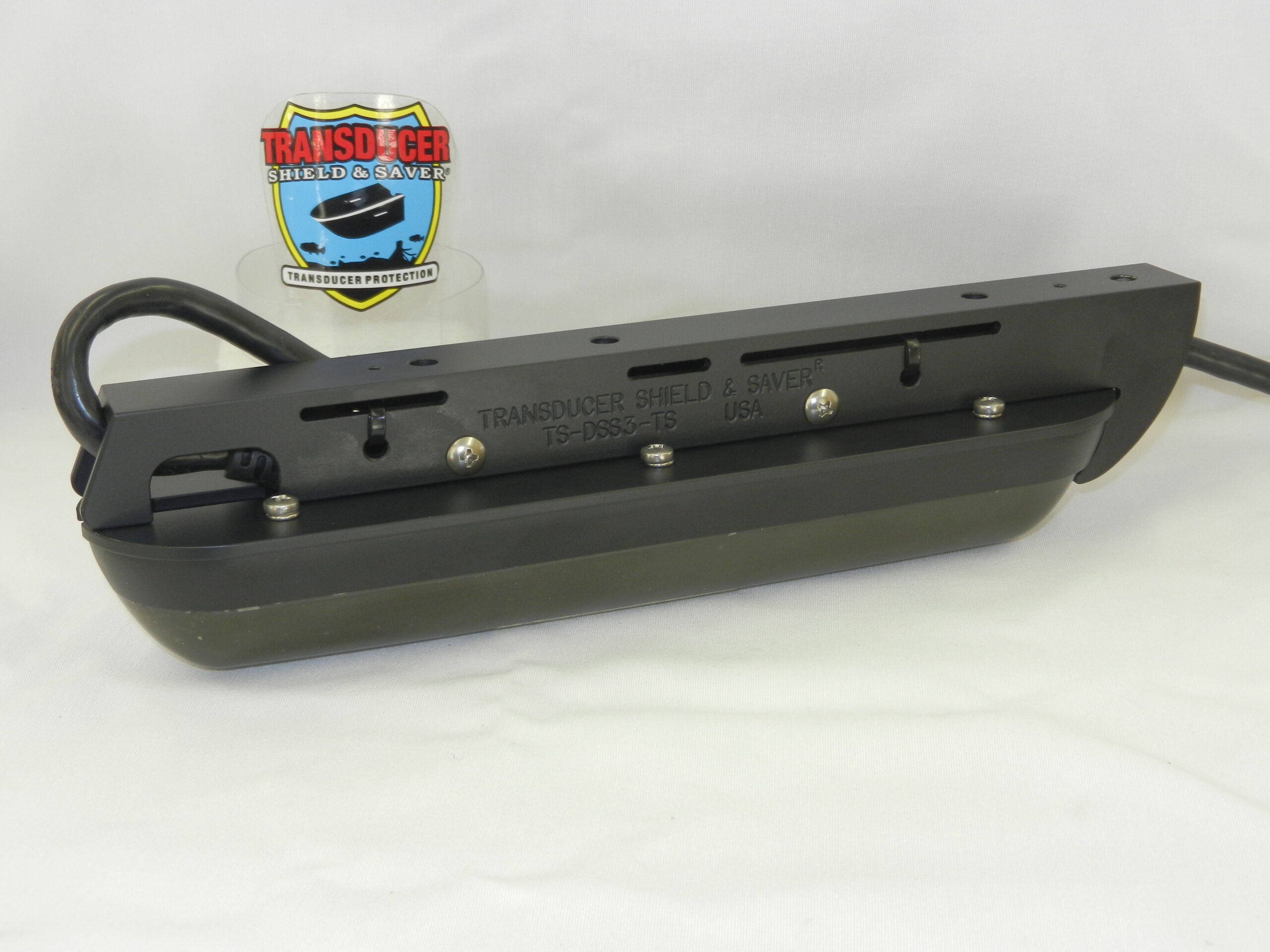

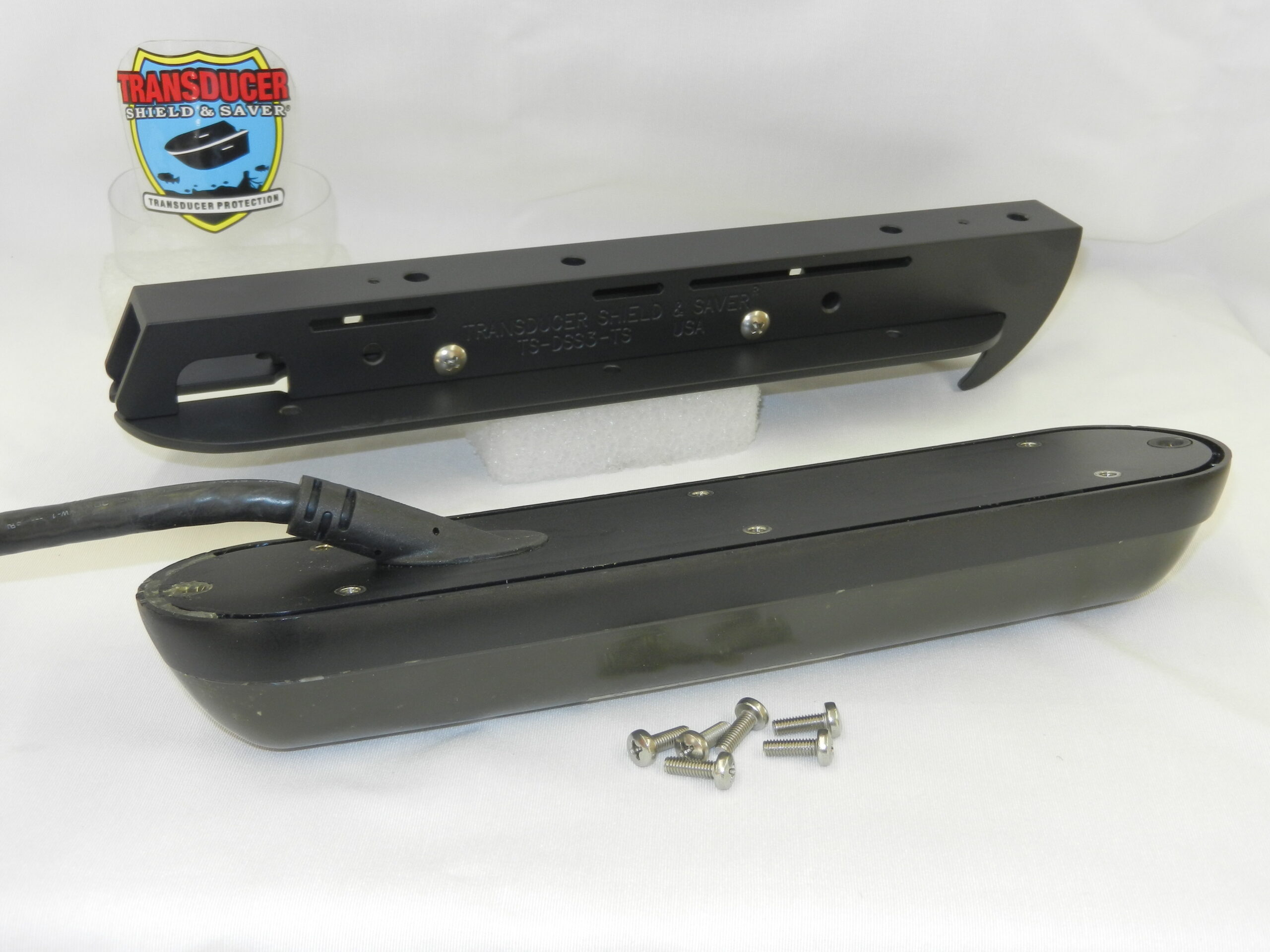

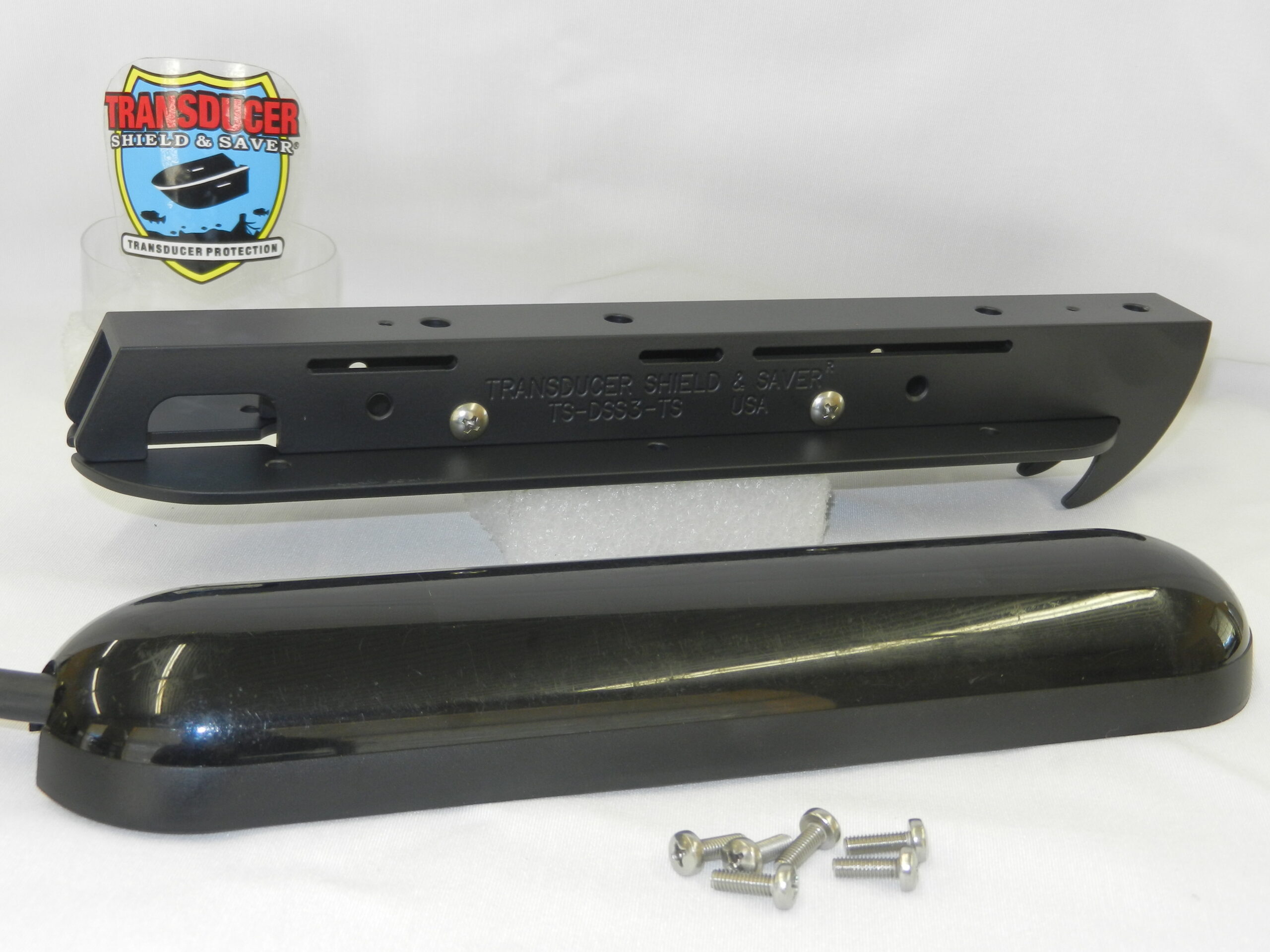

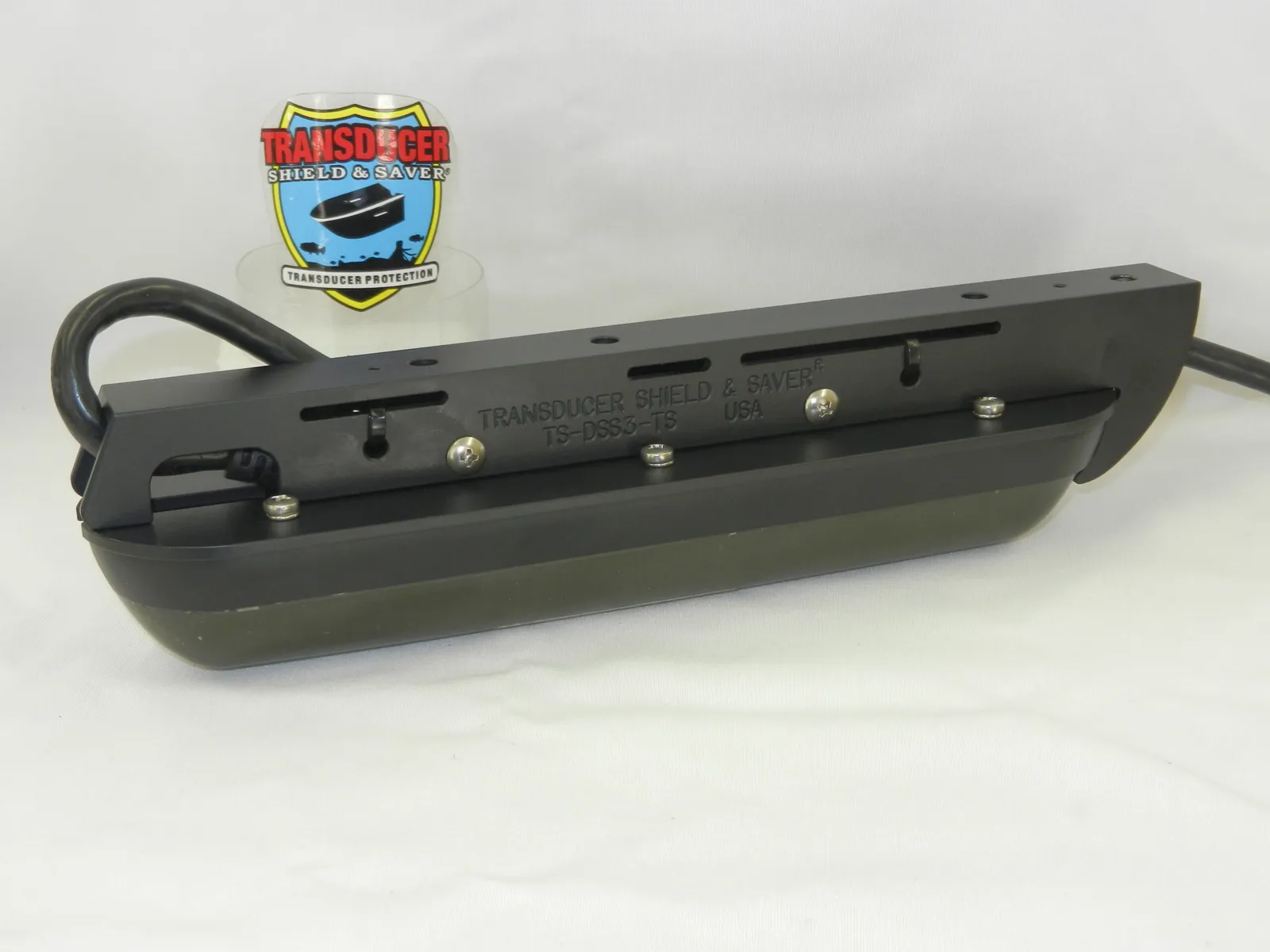

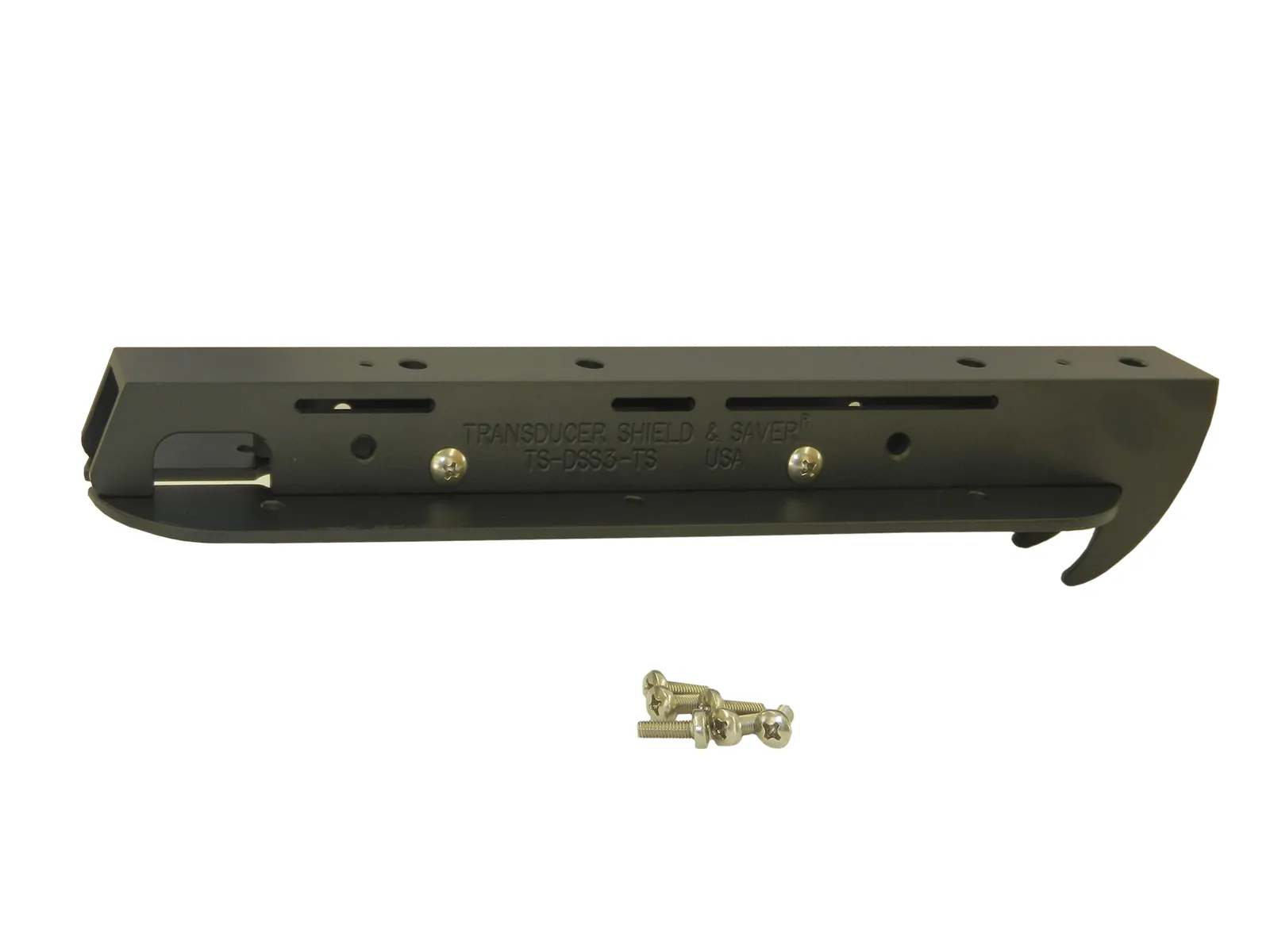

Item # TS-DSS3-TS  is built in High Quality Aluminum Alloy and Black Powder Coated.  It is designed to fit Lowrance®/Simrad® Total Scan transducer # 000-12568-001 (approx. 10” long x  2-1/4” wide x 1-1/4” thick and the cable comes out from the back) or  Lowrance®/Simrad® Structure Scan 3D transducer # 000-12396-001 (approx. 10” long x 2-1/4” wide x 1-1/2”thick).   This Transducer Shield will also fit the  Live Active Imaging 2-in-1 transducer # 000-14490-001 or 3-in-1 transducer # 001-14489-001.  NOTE:  this item DOES NOT fit the ActiveImageing HD 3-in-1 Transducer  # 000-16062-001 or ActiveImaging HD 3-in-1 FishReveal Transducer # 000-1060-001.

The Sleek Hydrodynamic Design will cut through the water for less drag, reduces collection of debris, keeps the transducer positioned correctly and will not interfere with the transducer signal.

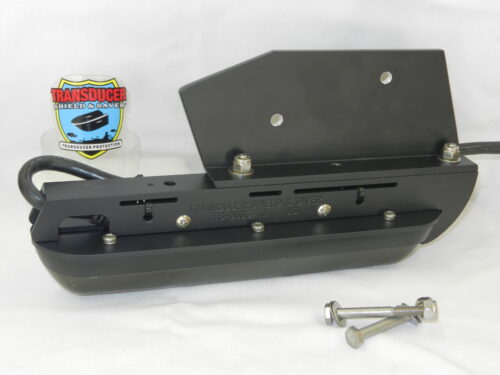

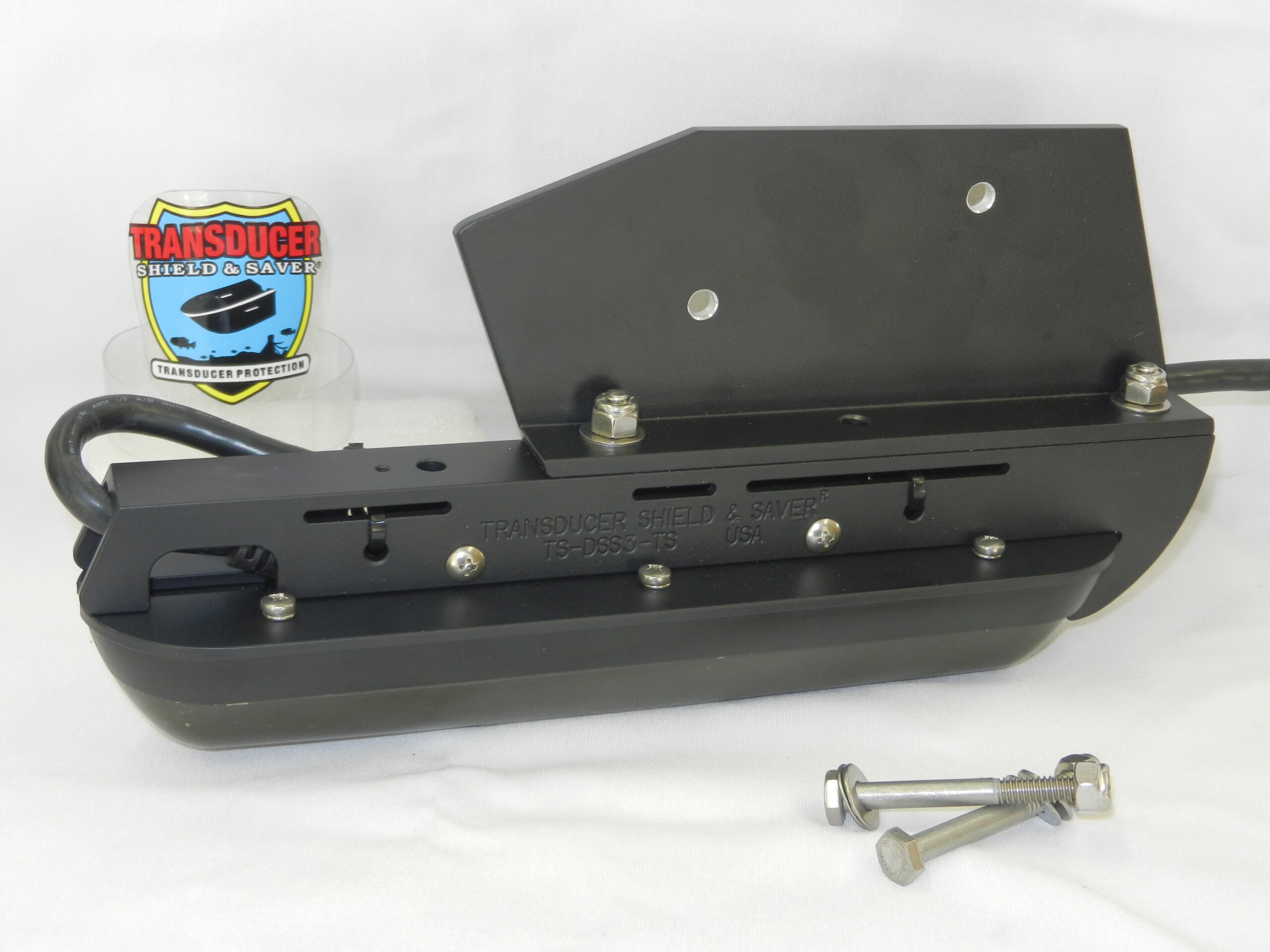

Item TS-DSS3-TS along with additional components can easily be bolted to (a) the side of a Jack Plate or (b) on the Hole Shot Plate under the Jack Plate or (c) on the boat set back (under the transom).  The Transducer Shield must be attached to an L Bracket or Wedge for (a), (b) or (c) installation.   NOTE:  When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water.  For bottom reading on plane, a transducer inside the hull will be required.

Please be aware that when installing a Total Scan, Structure Scan 3D or Live Active Imaging transducers at the back of the boat, the transducer will lose the signal when the boat is up on plane.  To track the bottom when the boat is up on plane, a thru hull transducer will be required.  See your Lowrance® owner manual for additional information.

ADDITIONAL COMPONENTS required when purchasing Item # TS-DSS3-TS:

(a)  on the side of a Jack Plate – Click on L Brackets
(b)  on the Hole Shot Plate under the Jack Plate – Click on Wedges
(c)  on the Transom Set Back – Click on Wedges

*** If your boat does not have a Jack Plate or Set Back and you must attach your transducer to the back of the boat on the transom – Please go to Spring Back Bracket Item # SBB-4 and Armor Plate Item # AP-TS-SS2-3D

It is very important that you complete the questionnaire when ordering our products. The information you provide will help us to assist you better and avoid a delay in shipping your order.

All of the Products are Proudly Designed and Built in the USA
See More Fish …… Catch More Fish

Additional information

Weight 4 lbs
Dimensions 8 × 4 × 4 in
