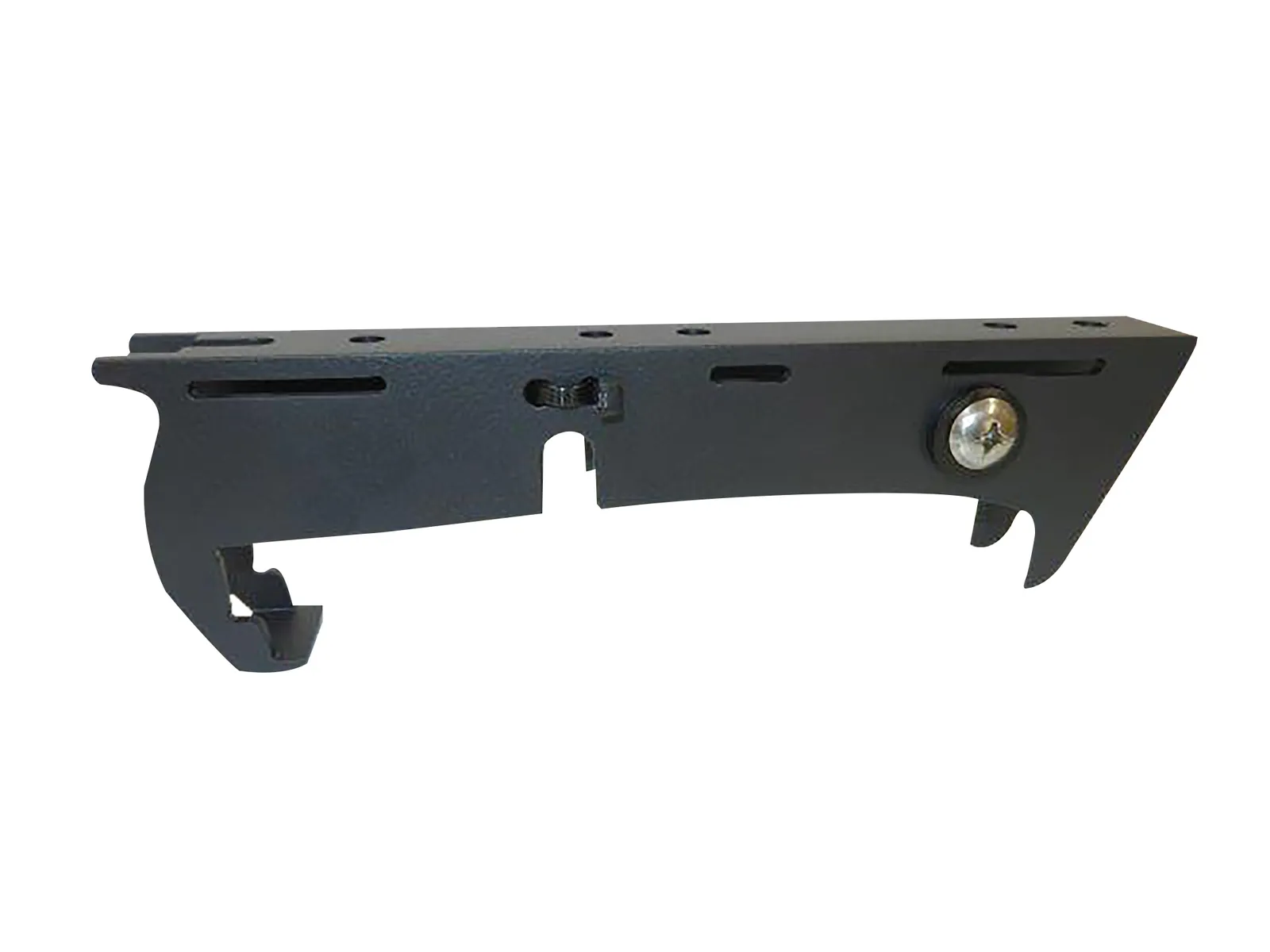

TM-ONIX-2 fits Humminbird Side Image Xducer XT 14 20 HDSI T (RD) and XT 14 74 HDSI T (RD)

Original price was: $84.95.Current price is: $64.95.

TM-ONIX-2 fits Humminbird® HD Side Image Transducer # XT 14 20 HDSI T (RD) or XT 14 74 HDSI T (RD) for trolling motor, set back or jack plate installation.  It DOES NOT fit the ORIGINAL transducer # XT 14 20 HDSI T or XT 14 74 HDSI T.   ONIX transducer differences





  • Strap Size Guide:

    Motorguide = 3.5"


    Minnkota up to 70 lb thrust = 3.5"

    Minnkota 74 to 101 lb thrust = 4.0"

    Minnkota 112 lb 4.5"

Description

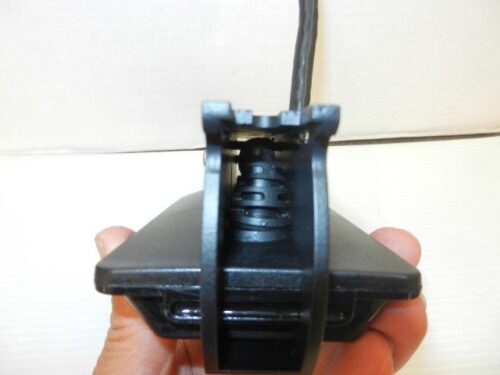

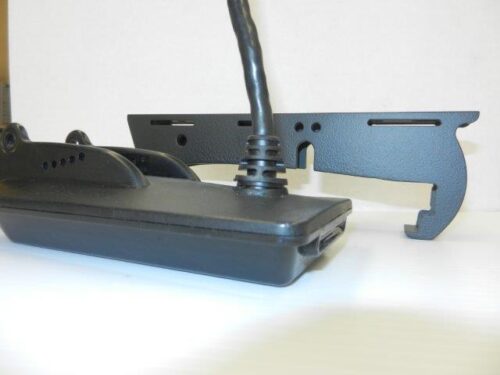

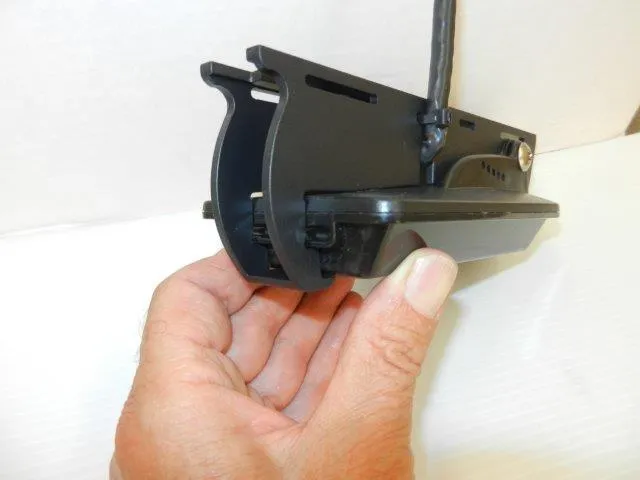

Item # TM-ONIX-2 is built in High Quality Aluminum Alloy and Black Powder Coated.  The Sleek Hydrodynamic design will reduce collection of debris, keep the transducer positioned correctly and will not interfere with the transducer signal.  TM-ONIX-2 is uniquely designed to fit the Humminbird® “redesigned” Onix Ci Si transducer # XT 14 20 HDSI T (RD) or XT 14 74 HDSI T (RD).  IMPORTANT:  The redesigned transducer measures 6-1/2″ from front to back and 3-1/4″ from side to side.  It has a lip around the under part of the transducer and has an epoxy filler trough at the back.  The transducer number is labelled on the cable near to the plug “XT 14 20 HDSI T (RD)”or XT 14 74 HDSI T (RD)”. It WILL NOT fit our  original Transducer Shield # TM-ONIX-1.    It is important that you know YOUR transducer number when ordering this item, because Humminbird® HAS NOT changed the transducer number on their website. If your transducer number does not end with (RD) please go to Item # TM-ONIX-1        ONIX transducer differences

For trolling motor installation, two straps are required and are not included.  Heavy Duty stainless steel, black powder coated straps are available @ $5.95 each.  NOTE:  For Minnkota® 74 lb thrust and below (prop and skeg on opposite ends) OR Motorguide® 12v 54 lb thrust and below, additional custom componts are required.

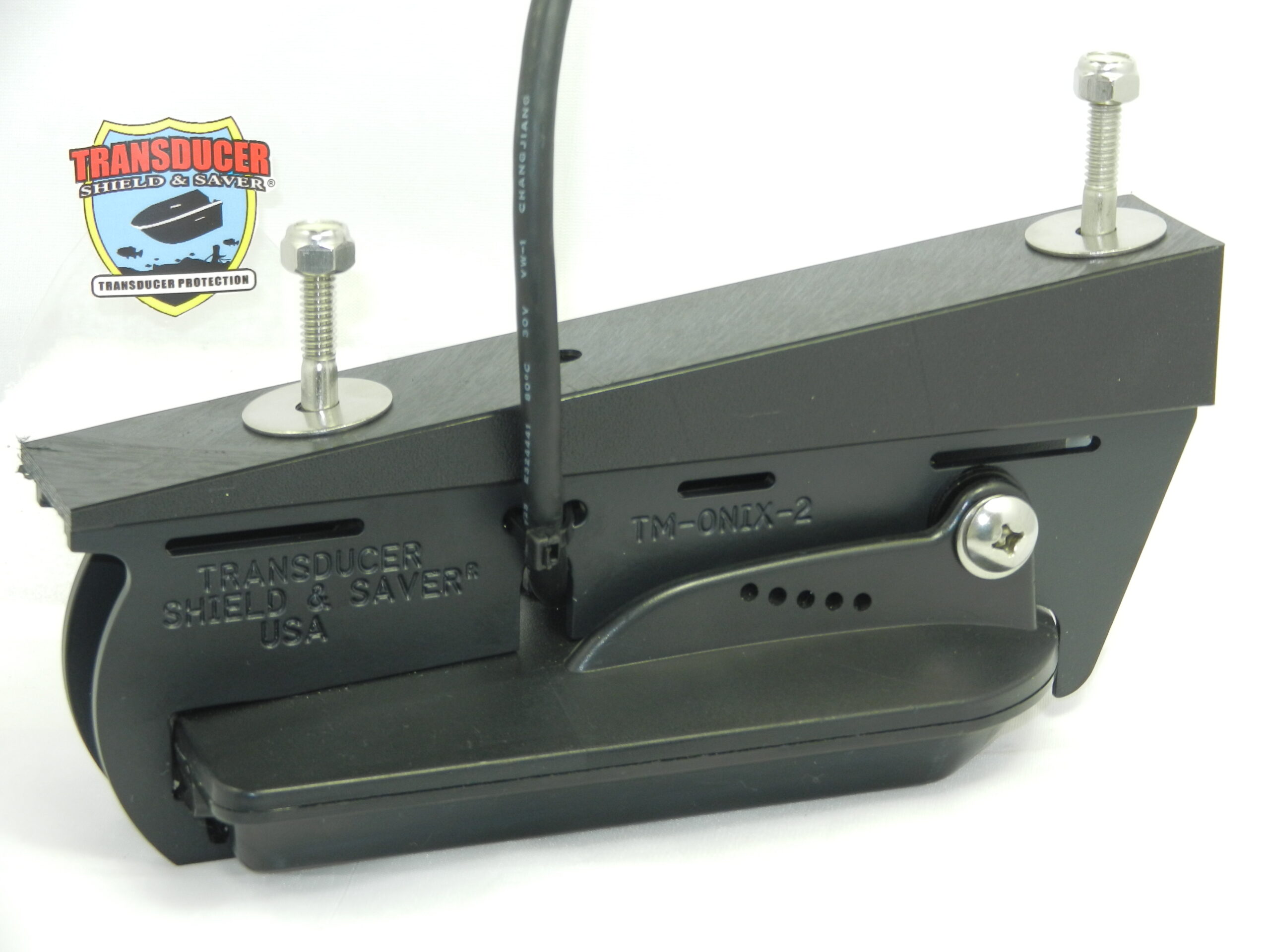

Item # TM-ONIX-2 along with additional accessories, can easily be bolted to the side of a Jack Plate, or on a hole shot plate under the Jack Plate, or on a boat Set Back.  For more information please go to the L Brackets and or Wedges. It is very important that you complete the questionnaire when ordering this item.  The information you provide will help us to assist you better and avoid a delay in shipping your order.

It is very important that you complete the questionnaire when ordering this item.  The information that you provide will help us to assist you better and avoid a delay in shipping your order.

Proudly Designed and Built in the USA

See More Fish    ……    Catch More Fish

Additional information

Weight 3 lbs
Dimensions 8 × 4 × 4 in
