TG-TUG to fit Garmin traditional dual beam / dual frequency transducer # 010-10272-00 or 010-10249-20

$139.00

TG-TUG is Ideal for Installing on a trolling motor.  It can also be attached on the side of a jack plate or on the boat set back with additional components.

  • Strap Size Guide:

    Motorguide = 3.5"


    Minnkota up to 70 lb thrust = 3.5"

    Minnkota 74 to 101 lb thrust = 4.0"

    Minnkota 112 lb 4.5"

Description

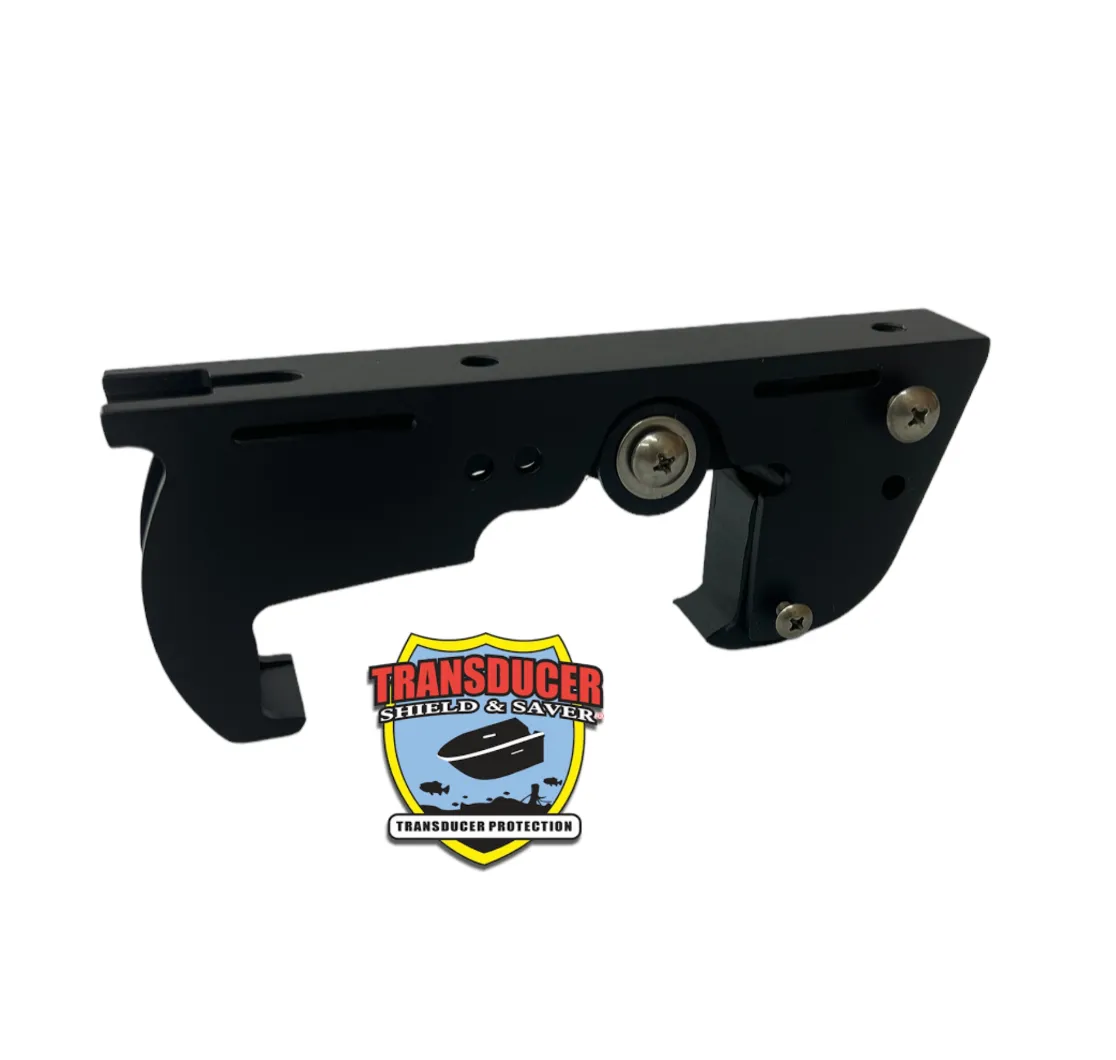

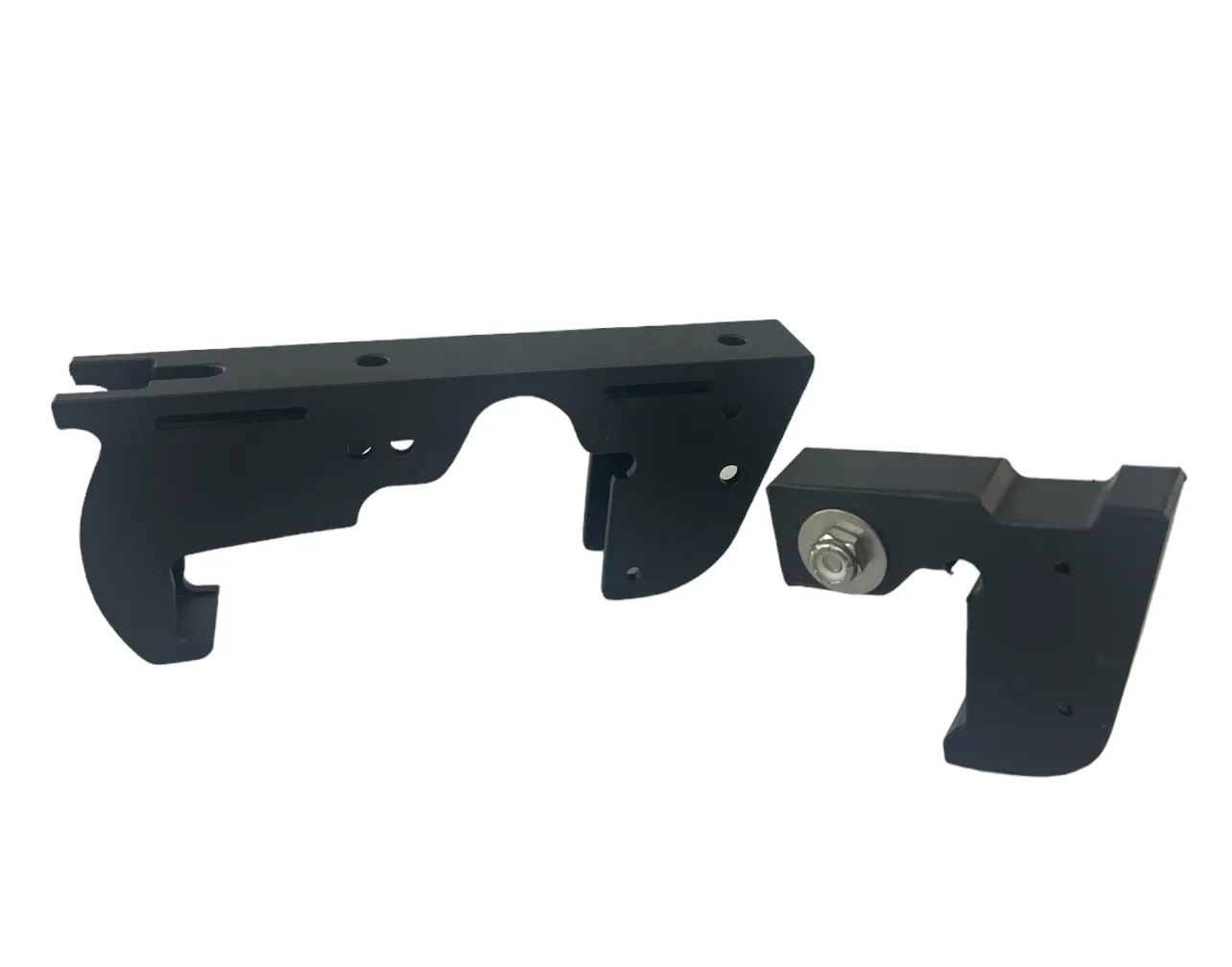

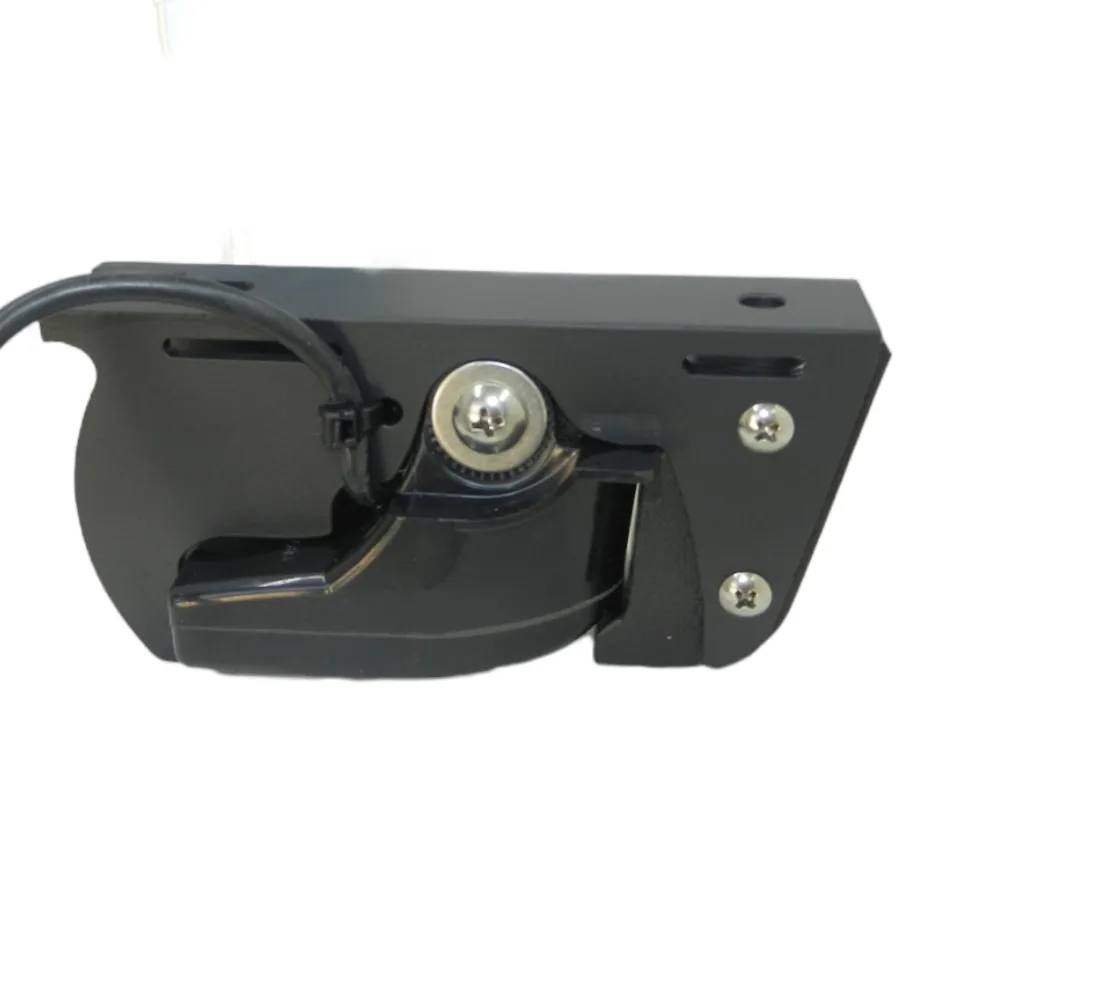

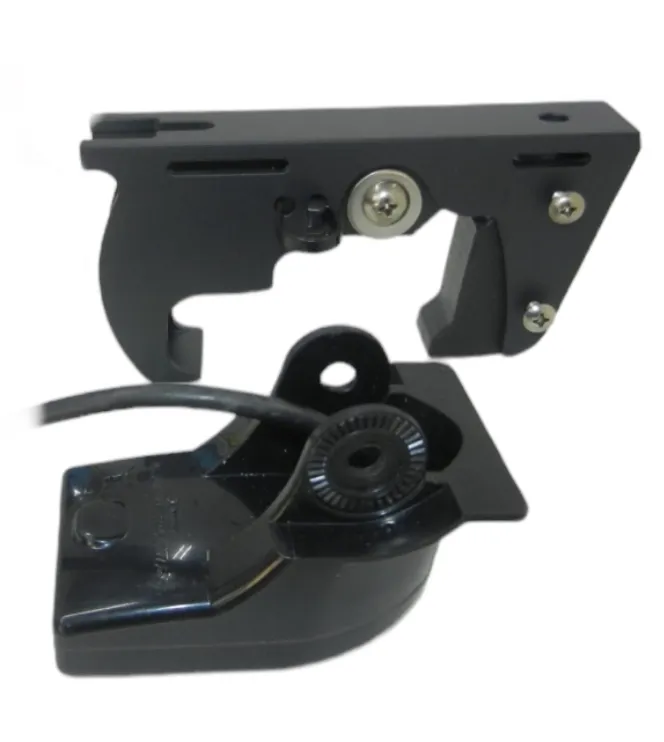

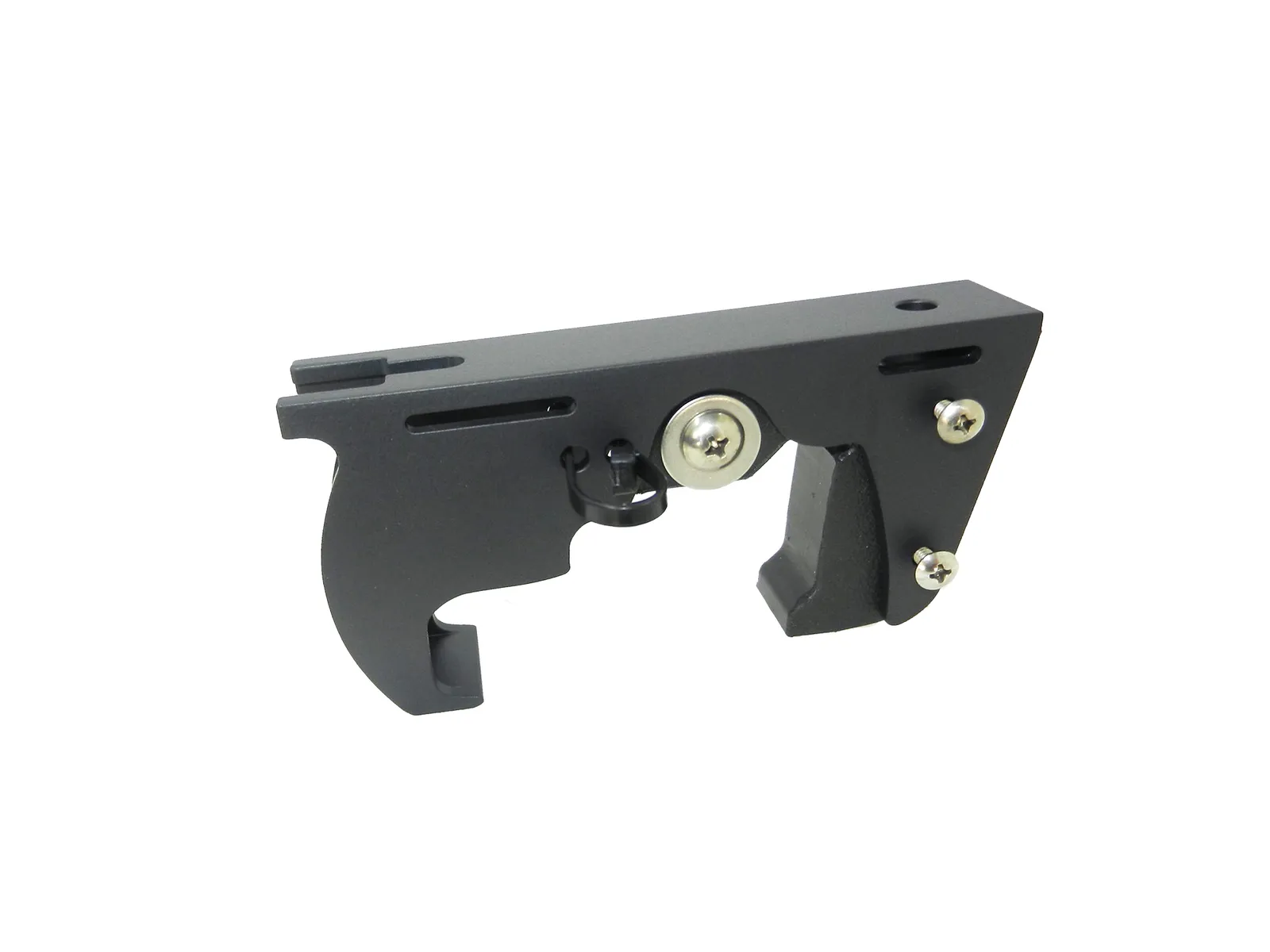

Item # TG-TUG is built in High Quality Aluminum Alloy and Black Powder Coated to withstand harsh environment.  It is designed to fit Garmin Dual Beam / Dual Frequency transducer # 010-10272-00 (6pin) or Traditional Transom  500w 77/200kHz transducer # 010-10249-20 (4 pin).  Transducer size is approximately 1-5/8″ wide x 3″ long.   This Transducer Shield does not fit the Garmin transducer # 010-10272-10

The Transducer Shield’s sleek hydrodynamic design will cut through the water for less drag especially on trolling motors.  It reduces collection of debris, keeps the transducer positioned correctly and will not interfere with the transducer signal.

For Trolling Motor installation, two straps are required which are not included.  Optional:  HDTS-B heavy duty black powder coated stainless steel straps @ $5.95 each and available in three sizes to suit your particular trolling motor.

This Transducer Shield is also designed to easily attach to one of our L Brackets or Wedges for Jack Plate, Hole Shot Plate or Set Back installation.

When purchasing this item to attach to your jack plate, please go to:

*  L Brackets for install on the side of the jack plate – choose by jack plate brand and size

*  Wedges for install on the hole shot plate under the jack plate – choose by jack plate brand and size

*  Wedges for install under the transom set back – if your boat does not have a flat set back, this is not a good option for you.

If you do not have a Jack Plate, you do not need our TG-TUG shield GO TO:

*  Spring Back Bracket # SBB-5 to install the transducer on the transom

*  Armor Plate # AP-GAR

It is very important that you complete the questionnaire when ordering this item.  The information you provide will help us to assist you better and avoid a delay in shipping your order.

Proudly Designed and Built in the USA

See More Fish   ……….   Catch More Fish



Additional information

Weight 3 lbs
Dimensions 8 × 4 × 4 in
