Description

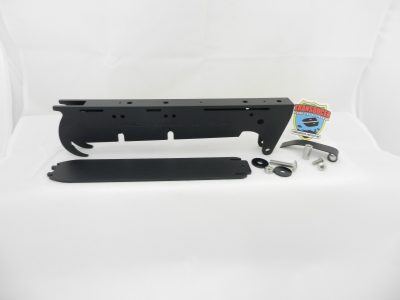

Item # TS-TRI-SH is built in High Quality Aluminum Alloy and Black Powder Coated. It is designed to fit Lowrance® Hook2 / Reveal Triple Shot transducer # 000-14029-001 (approx. 10” long x 1-3/8” wide x 1”thick and the cable comes out at the front). The Sleek Hydrodynamic Design will cut through the water for less drag, reduces collection of debris, keeps the transducer positioned correctly and will not interfere with the transducer signal. NOTE: When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water. For bottom reading on plane, a transducer inside the hull will be required.
Item # TS-TRI-SH along with additional components can easily be bolted to (a) the side of a Jack Plate or (b) on the Hole Shot Plate under the Jack Plate or (c) on the boat set back (under the transom). The Transducer Shield must be attached to an L Bracket or Wedge for (a), (b) or (c) installation.
Please be aware that when installing a Triple Shot Transducer at the back of the boat, the transducer will lose the signal when the boat is up on plane. To track the bottom when the boat is up on plane, a thru hull transducer will be required. See your Lowrance® owner manual for additional information.
ADDITIONAL COMPONENTS required when purchasing Item # TS-TRI-SH:
(a) on the side of a Jack Plate – Please go to L Brackets
(b) on the Hole Shot Plate under the Jack Plate – Please go to Wedges
(c) on the Transom Set Back – Please go to Wedges
*** If your boat does not have a Jack Plate or Set Back and you must attach your transducer to the back of the boat on the transom – Please go to Spring Back Bracket Item # SBB-4 . An Armor Plate for the Triple Shot Transducer will be coming soon.
It is very important that you complete the questionnaire when ordering our products. The information you provide will help us to assist you better and avoid a delay in shipping your order.
All of the Products are Proudly Designed and Built in the USA
See More Fish …… Catch More Fish
