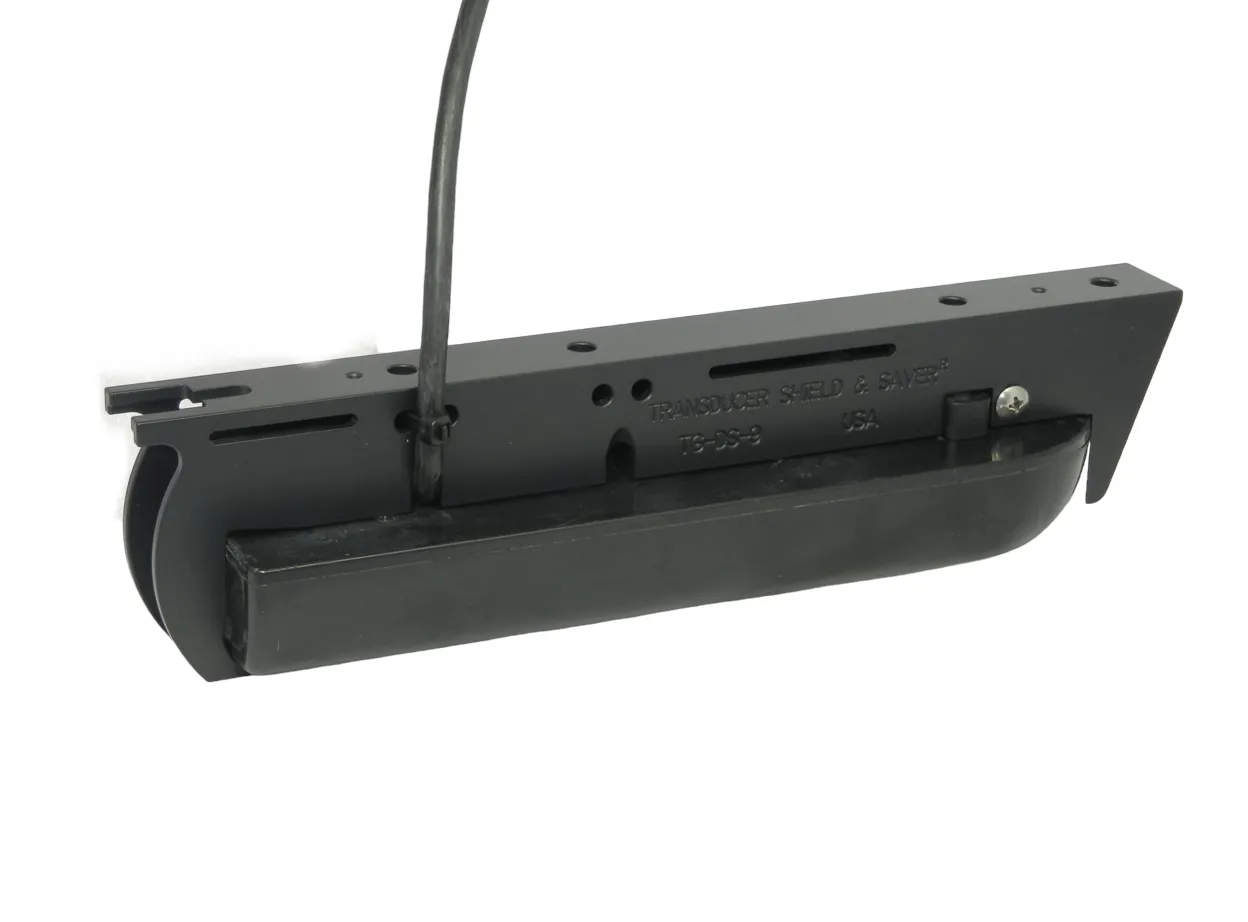

Picture shows Transducer Shield TG-DS-9 and Garmin Transducer (not included)

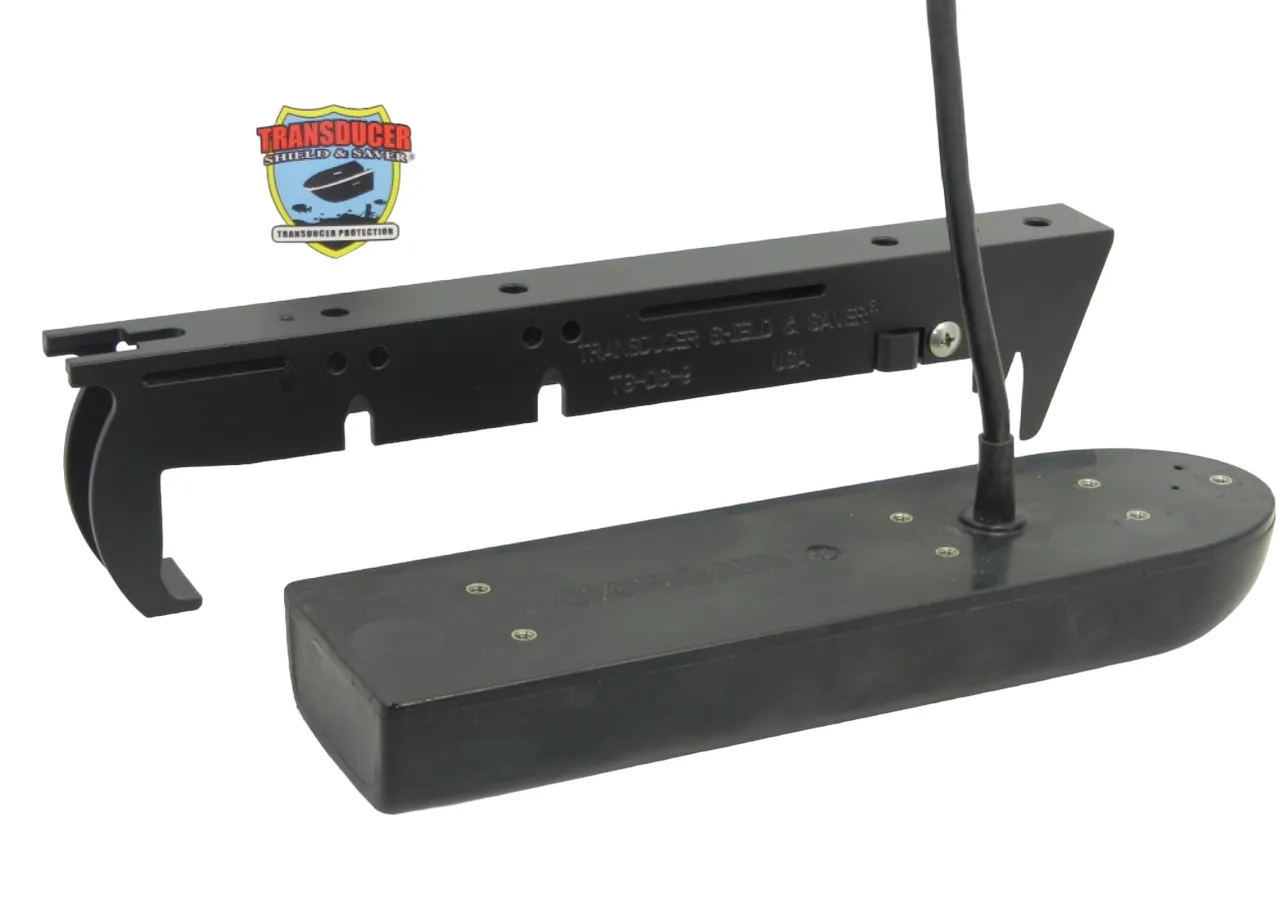

Picture shows Transducer Shield TG-DS-9 and Garmin Transducer (not included)
TG-DS-9 shown attached to a trolling motor

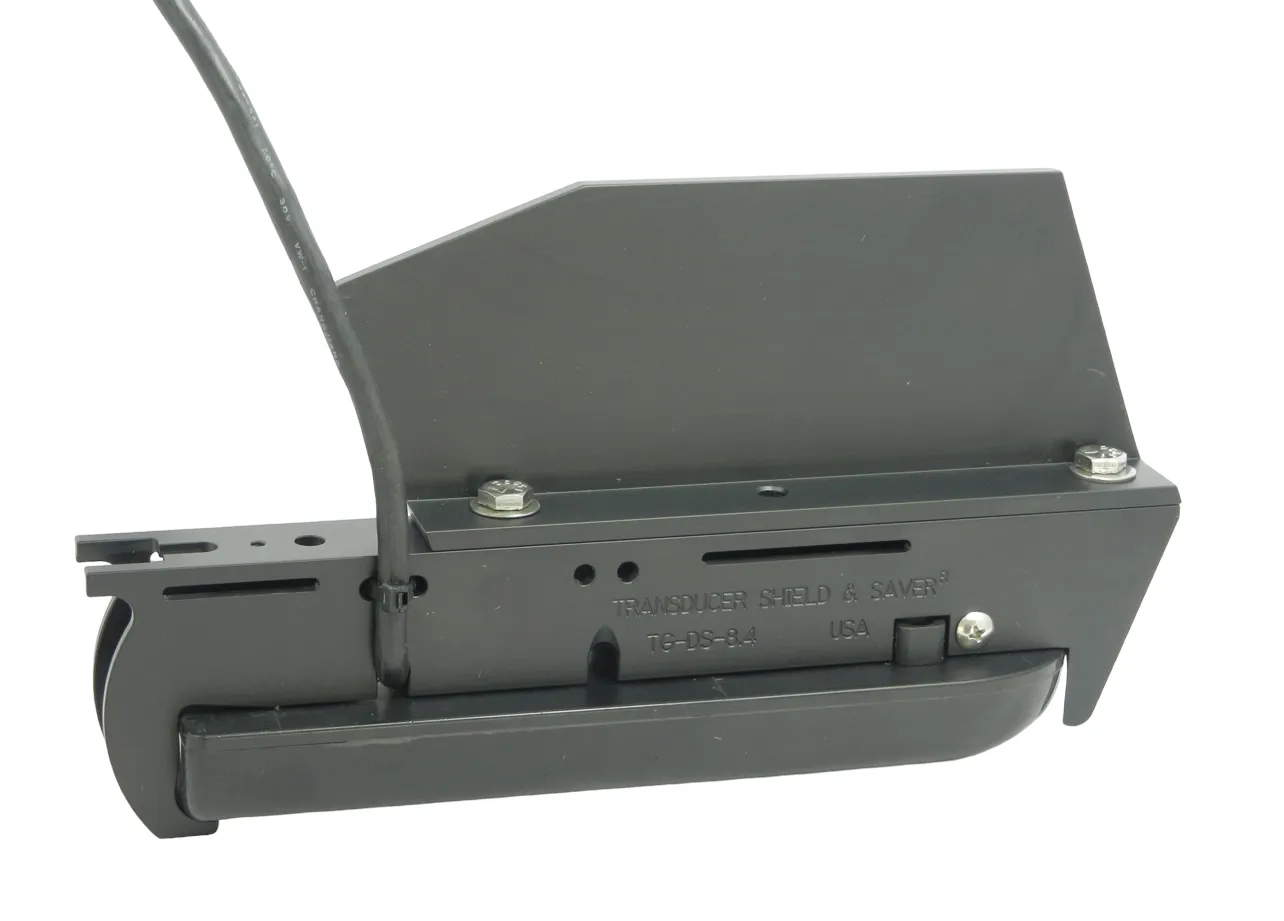

TG-DS-9 shown attached to an L Bracket to attach to the side of a jack plate

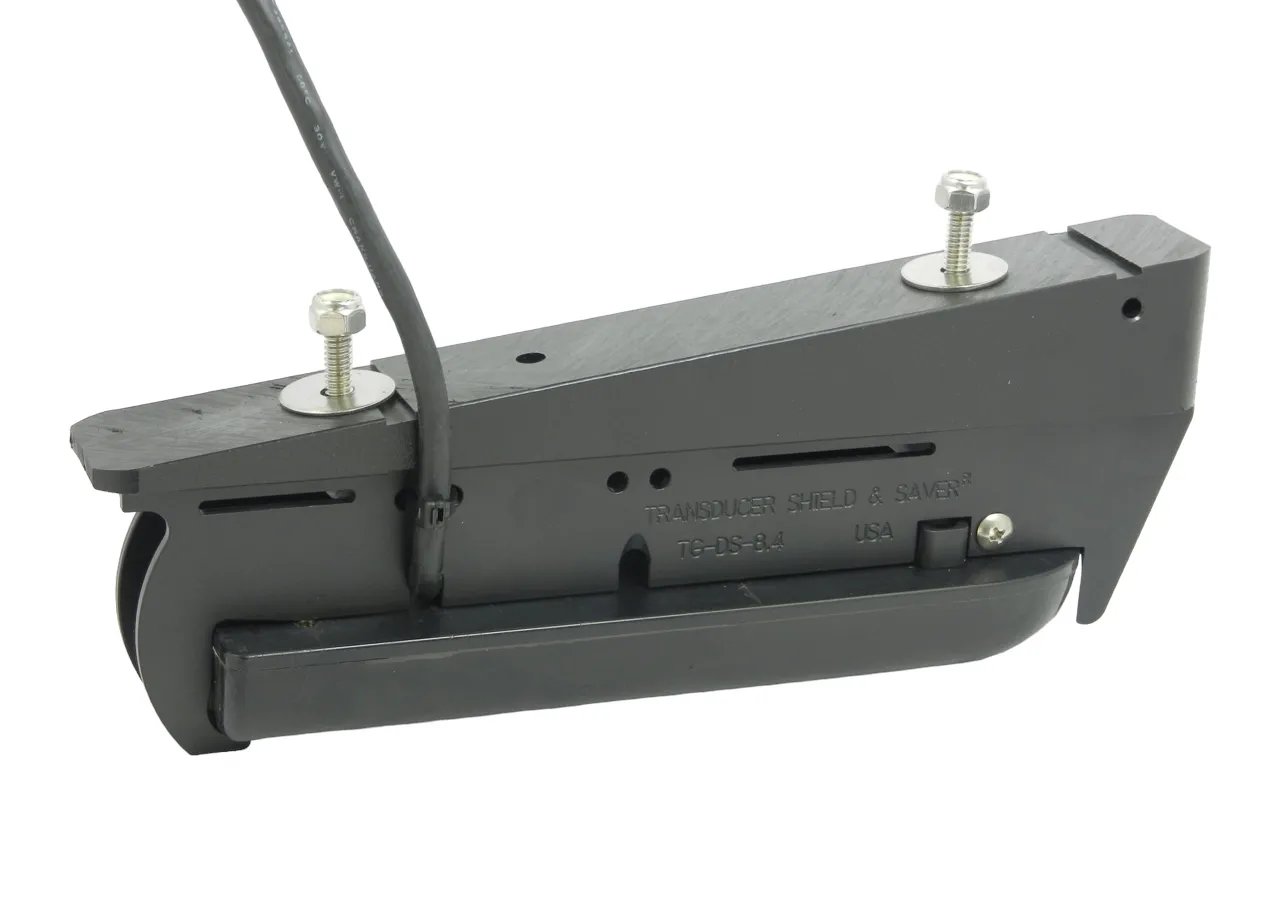

TG-DS-9 shown attached to a wedge going on a set back
Garmin Transducer identification

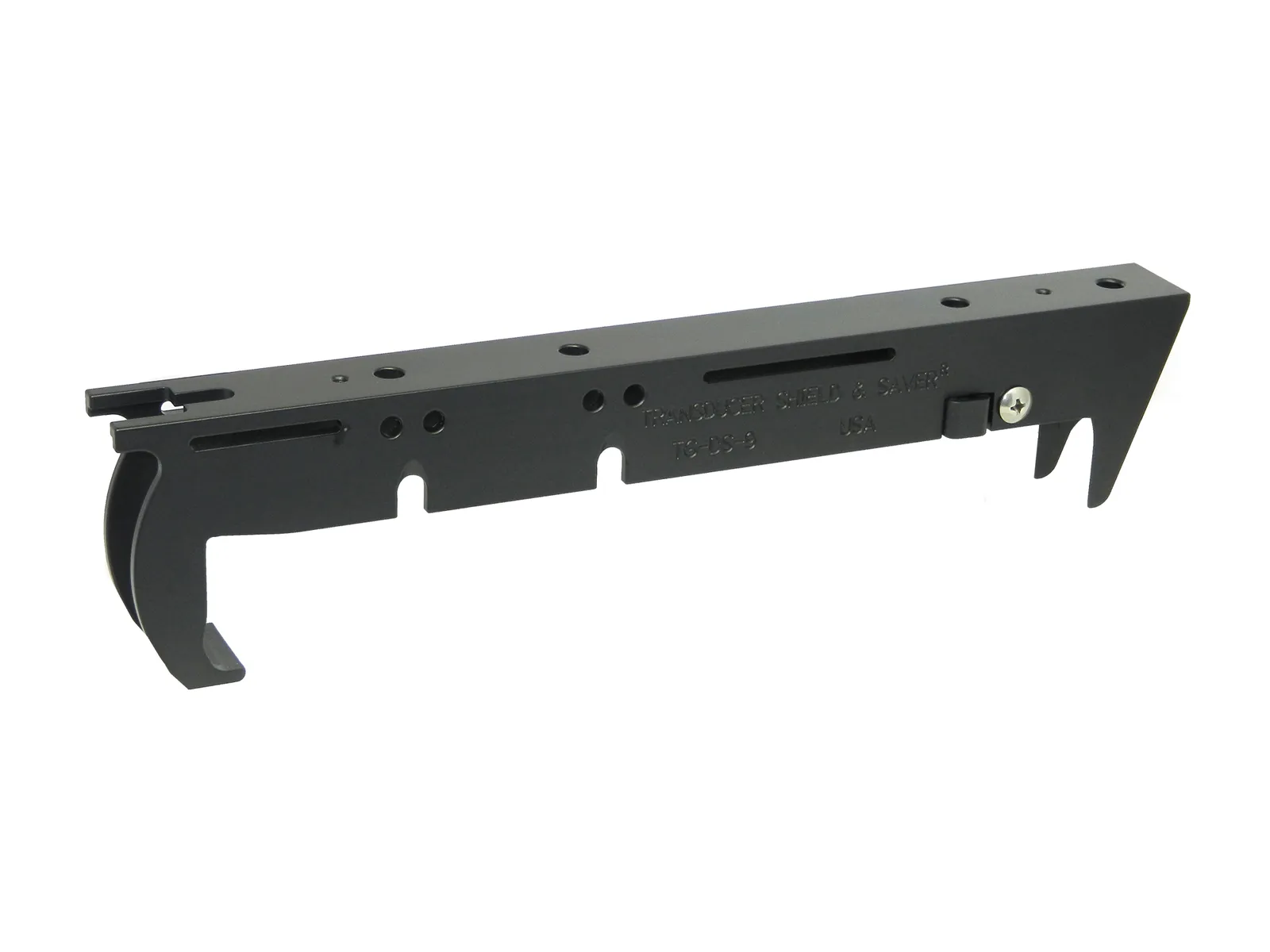

TG-DS-9 fits Garmin DownVü/SideVü Chirp Transducers GT21, GT23, GT41, GT50 and GT51

Original price was: $149.95.Current price is: $134.95.

Ideal for Installing on a trolling motor, on the side of a jack plate or on the boat set back.  Additional components will be required.  This Transducer Shield will not fit the new Garmin GT 36 or GT 56 transducer.

NOTE:  When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water.  For bottom reading on plane, a transducer inside the hull will be required.

It is very important that you complete the questionnaire when ordering this item.

  • Strap Size Guide:

    Motorguide = 3.5"

    Minnkota up to 70 lb thrust = 3.5"

    Minnkota 74 to 101 lb thrust = 4.0"

    Minnkota 112 lb 4.5"

SKU: TG-DS-9 Categories: , ,

Item # TG-DS-9 is built in High Quality Aluminum Alloy and Black Powder Coated to withstand harsh environment.  It is designed to fit Garmin DownVü/SideVü Chirp Ttransducer Models GT21, GT23, GT41, GT50 and GT51.   This Transducer Shield does not fit the new Garmin GT 36 or GT 56 transducer..

The Transducer Shield’s sleek hydrodynamic design will cut through the water for less drag especially on trolling motors.  It reduces collection of debris, keeps the transducer positioned correctly and will not interfere with the transducer signal..

For Trolling Motor installation, two straps are required and are not included.  Optional:  HDTS-B heavy duty black powder coated stainless steel straps @ $5.95 each and available in three sizes.

WARNING:  Due to the size of the transducer and Transducer Shield, when installed on a trolling motor, additional components may be required for a better fit on the trolling motor. If your trolling motor has the skeg at the front you will need a Ram Rail Kit @ $150.00 in addition to the Transducer Shield.  Please call for assistance.

The TG-DS-9 is designed to easily attach to one of our L Brackets or Wedges for Jack Plate, Hole Shot Plate or Set Back installation.  When purchasing this item to attach to your jack plate, please go to:

*  L Brackets for install on the side of the jack plate – choose by jack plate brand and size

*  Wedges for install on the hole shot plate under the jack plate – choose by jack plate brand and size

*  Go to Wedges for install under the transom set back – if your boat does not have a flat set back, this is not a good option for you.

*  Go to Spring Back Bracket # SBB-5 to install the transducer on the transom (if you do not have a jack plate)

*  Go to Armor Plate # AP-DS-9  this is in addition to the Spring Back Bracket

NOTE:  When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water.  For bottom reading on plane, a transducer inside the hull will be required.

It is very important that you complete the questionnaire when ordering this item.  The information you provide will help us to assist you better and avoid a delay in shipping your order.

Proudly Designed and Built in the USA
