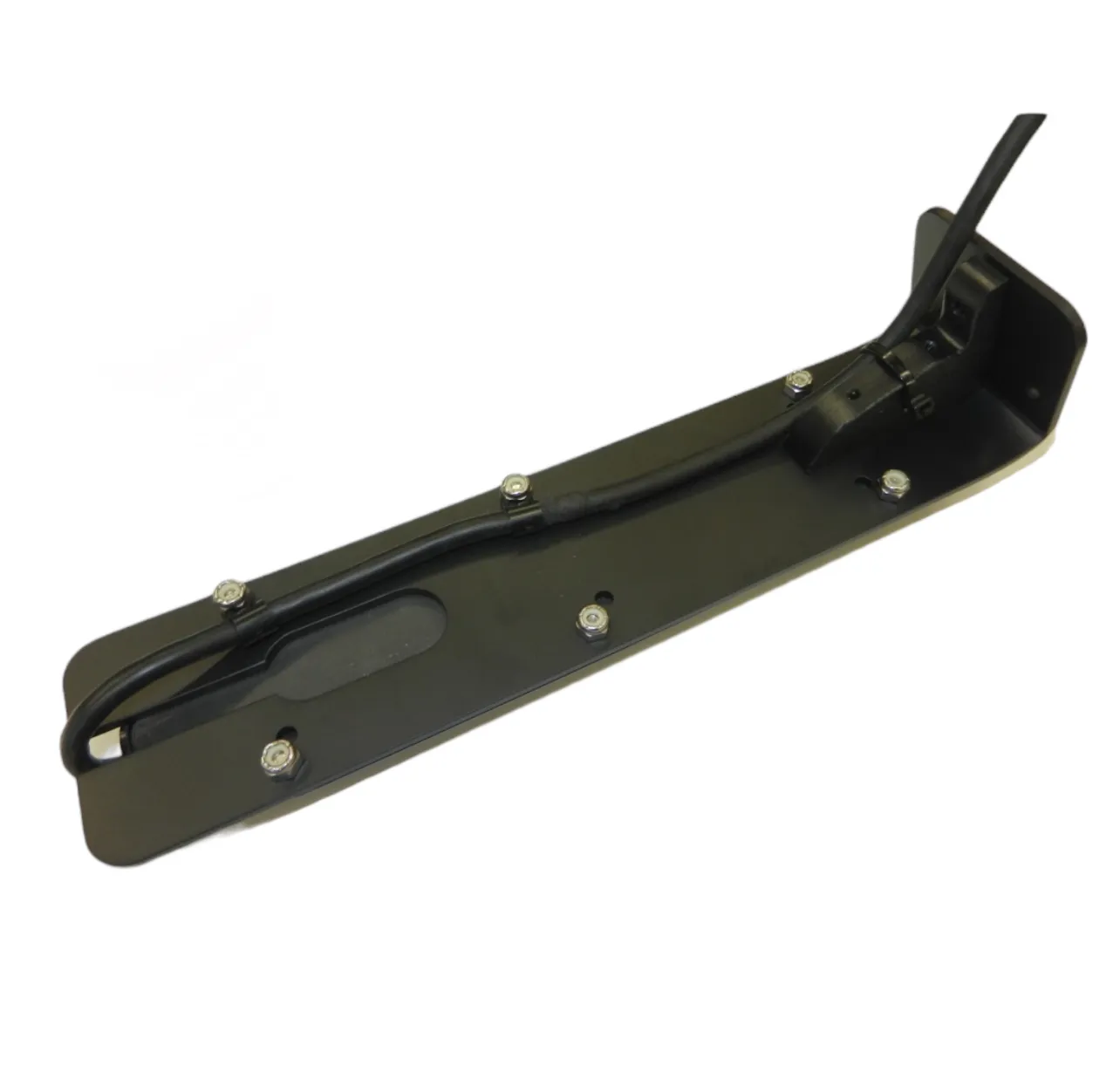

Picture shows Armor Plate with Lowrance 3-in-1 Transducer (not HD)

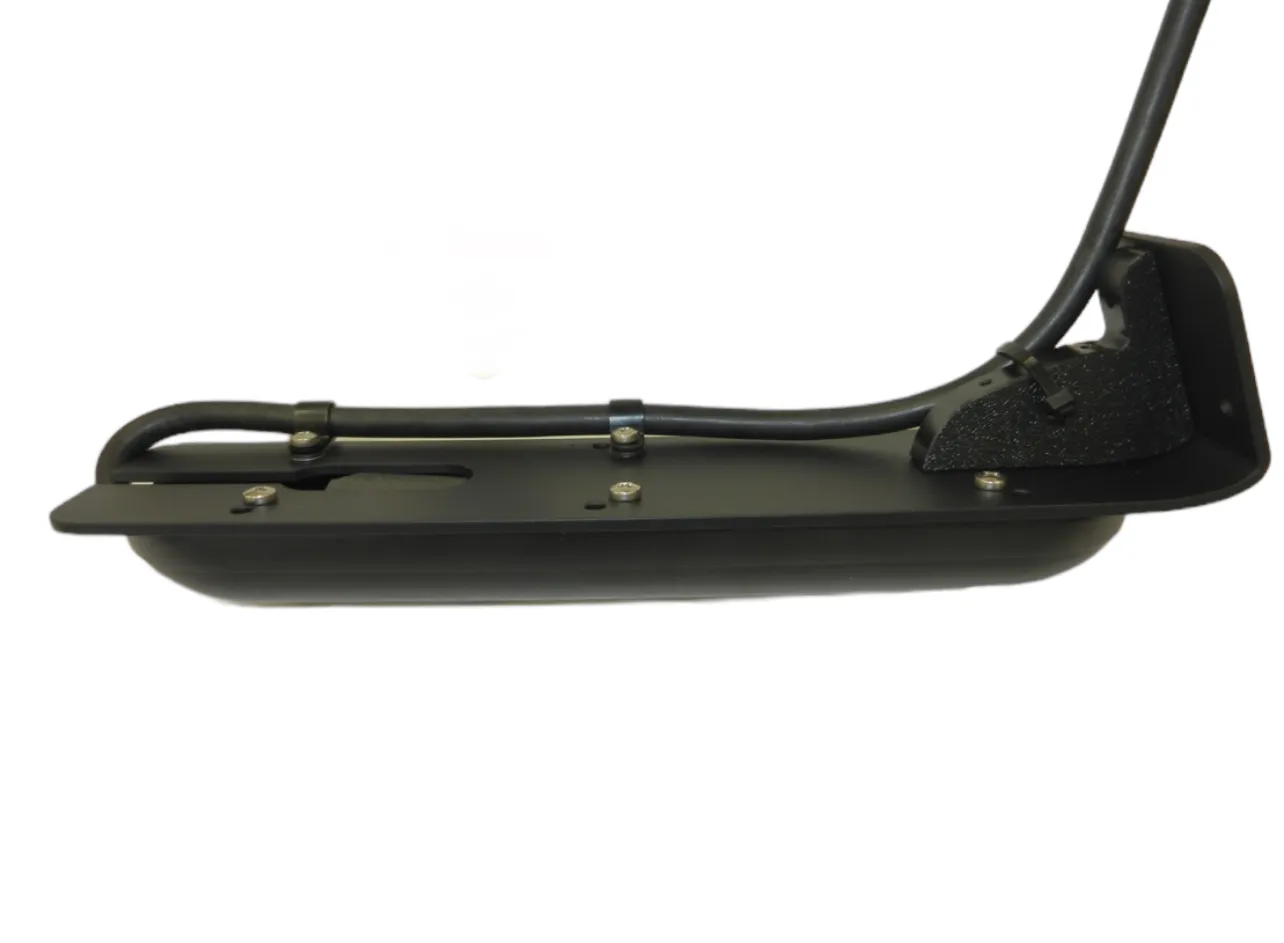

Side view of Armor Plate & Lowrance Transducer

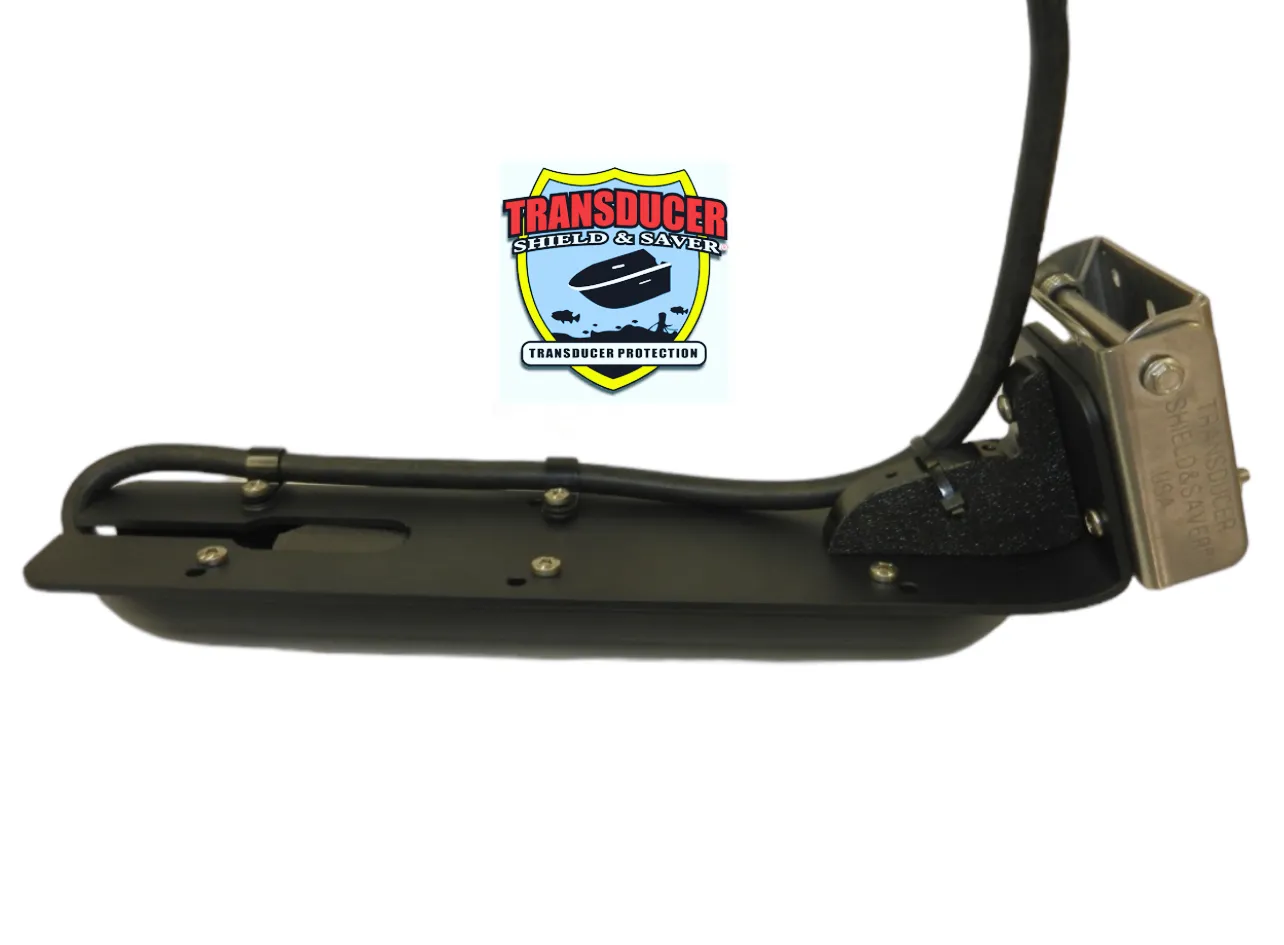

Side view of Armor Plate attached to a Spring Back Bracket

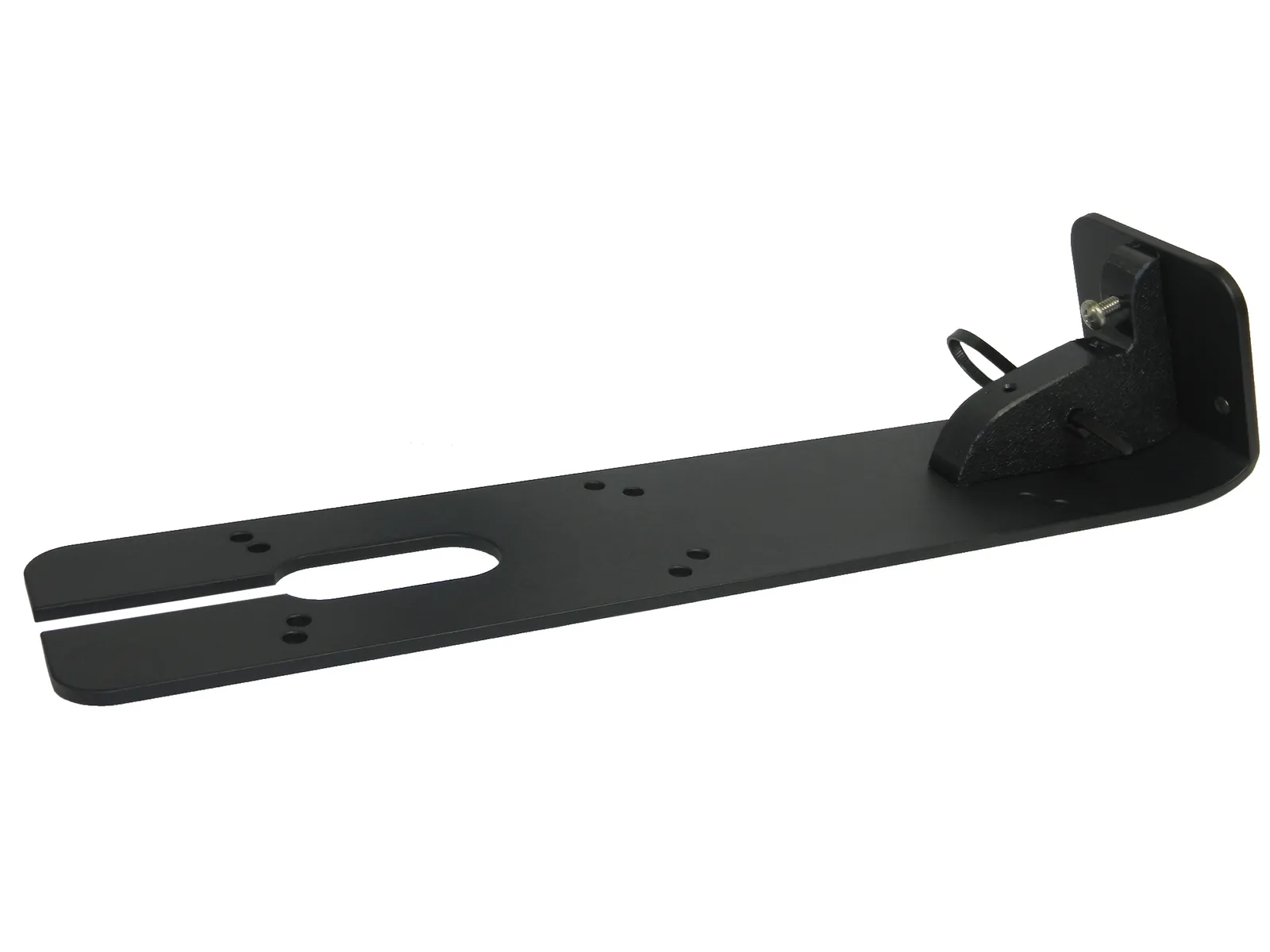

AP-TS-3D to fit Lowrance/Simrad Total Scan, LSS2, Structure Scan 3D, Total Scan, Live Active Imaging 2-in-1 or 3-in-1 transducer on a Transom

$79.95

^{For transom installation to protect your transducer from side to side and front to back impact. Ideal for boats with flat transoms and for boats without a jack plate.}
^{Recommended as an added accessory to our SBB-5 Spring Back Bracket.}

Boat Brand
Boat Model
Transom Angle*
Please provide the general angle of your transom so that the appropriate Armor Plate can be sent. Most boats have a 70-degree transom, while some others will have a 90-degree angled transom.
Product Name Quantity
Price: $0.00

Subtotal
Options
Total

Quantity:

SKU: AP-TS-3D Categories: LOWRANCE, Armor Plates, Lowrance Tags: accessories, active imaging, armor plate, bracket, buoyancy, fish finder, Fish Reveal, Hook2, install, Lowrance, lss2, protection, shield and saver, simrad, spring, spring back bracket, total scan, transducer, transducer sonar, transom

Description

^{ITEM # AP-TS-3D}^{is built-in High-Quality Aluminum Alloy and Black Powder Coated. It is designed for installation on the boat transom. This Armor Plate is designed to fit Lowrance®/Simrad® Total Scan transducer # 000-12568-001 or LSS2 Structure Scan transducer # 000-10802-001 or Structure Scan 3D transducer # 000-12396-001 or Active Imaging 3-in-1 transducer # 000-14489-001 or 2-in-1 transducer # 000-14490-001 (all approximately 10-1/4″ long). This item includes stainless steel hardware and easy Do-It Yourself instructions.}

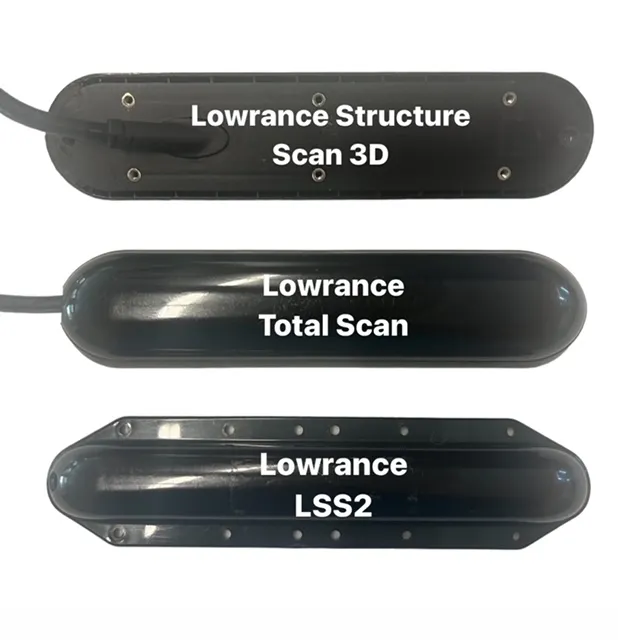

NOTE: Lowrance made this transducer very similar in name and shape as some of their other transducers. Please see the below photo to ensure you are ordering the correct product.

^{An Armor Plate is designed to protect the transducer from side to side as well as front and back impact. An Armor Plate takes the place of the factory transom mounting bracket. It is also designed to attach to our Spring Back Bracket # SBB-5 for all around transducer protection.}
^{If the Armor Plate is installed anywhere other than on the transom, for example on the set back wall, some shimming may be required if the transducer angle needs to be adjusted.}

^{A Spring Back Bracket # SBB-5 is recommended when ordering an Armor Plate for all around transducer protection. If an Armor Plate breaks, which has been attached to the boat without a Spring Back Bracket, it has no warranty whatsoever.}

Our Products are Proudly Designed &

Built in the USA to Protect & Save

Additional information

Weight	5 lbs
Dimensions	10 × 5 × 5 in
