TS-LSS-1 to fit Lowrance LSS1 Structure Scan xDucer on a Jack Plate & some Trolling Motors

$149.00

This Transducer Shield® can be installed on a Trolling Motor that has a Built In Sonar in the cone, OR on a Jack Plate, Hole Shot Plate or Set Back.  Additional components will be required.

NOTE:  When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water.  For bottom reading on plane, a transducer inside the hull will be required.
It is Very Important that you complete the questionnaire when ordering this item.

  • Strap Size Guide:

    Motorguide = 3.5"


    Minnkota up to 70 lb thrust = 3.5"

    Minnkota 74 to 101 lb thrust = 4.0"

    Minnkota 112 lb 4.5"

Description

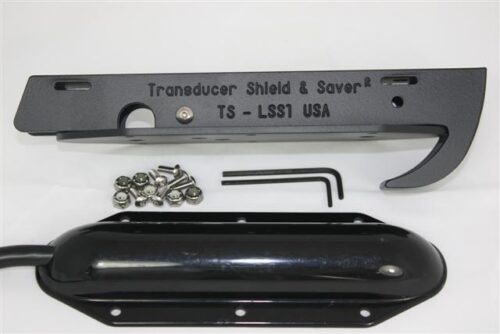

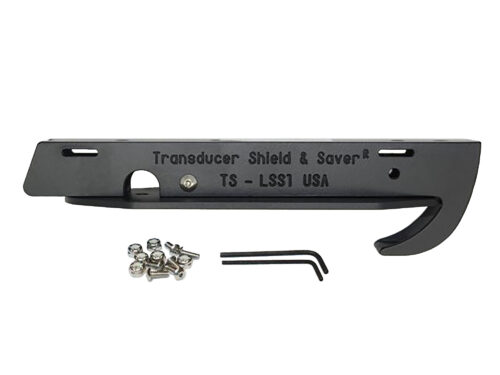

Item # TS-LSS-1 is built in High Quality Aluminum Alloy and Black Powder Coated. It is designed to fit Lowrance® LSS1 (6”) Structure Scan Transducer. This item DOES NOT fit the Lowrance® LSS2 (10-1/4”) Structure Scan transducer. Please go to TS-LSS2-L if you have the longer transducer.
The Sleek Hydrodynamic Design will cut through the water for less drag, especially on trolling motors. It reduces collection of debris, keeps the transducer positioned correctly and will not interfere with the transducer signal.

Item TS-LSS-1 along with additional accessories can easily be bolted to the side of a Jack Plate, on the Hole Shot Plate under the Jack Plate, OR on the boat set back. For this installation, please see L Brackets or Wedges. When installing a Structure Scan transducer it is important that you are aware that an in hull transducer will also be required. The Structure Scan transducer signal picks up trees and structure etc. A pod or skimmer transducer will pick up fish, depth and will separate the fish from the structure. Resulting in the best performance when the boat is up on plane.

Item TS-LSS-1 is approximately 7” long and can be installed on certain trolling motors that have a built in sonar in the cone/bullet. If you were planning on installing this Transducer Shield® on your trolling motor but it does not have a built in sonar, then please see Item # TS-LSS-3D.
Warning: Motorguide® 55lb thrust and below OR Minnkota 70 lb thrust and below, additional components will be required.

It is very important that you complete the questionnaire when ordering this item. The information you provide will help us to assist you better and avoid a delay in shipping your order.

Proudly Designed and Built in the USA
See More Fish …… Catch More Fish

Additional information

Weight 3 lbs
Dimensions 8 × 4 × 4 in
